Bicycle Handlebar Tape Fixings

Medium

We have got one more bicycle related challenge for you. Flying Machine- Bicycle Design Studio from Australia needs your help to improve the finishing details to hold the handle bar tape in place. The current solution looks good but has room for improvement in functionality. So please help us with the ideas and try to come up with something new.

The solution requires a system for securing handlebar tape at both ends that is both aesthetically pleasing, very robust and able to be easily manufactured. Production would most likely be through CNC process. Visually the end of the bar end cap must have the ability for laser etched logos to be applied.

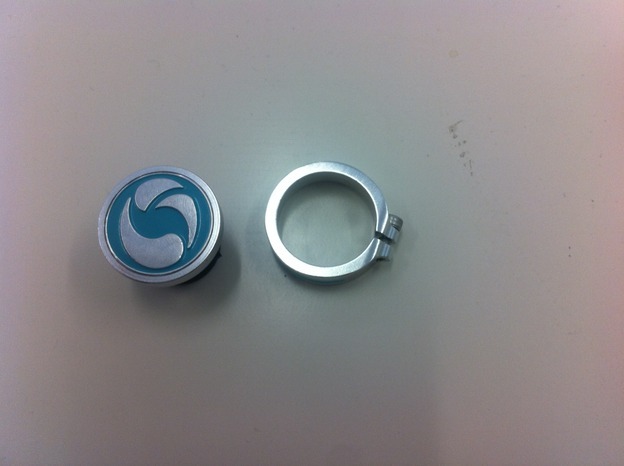

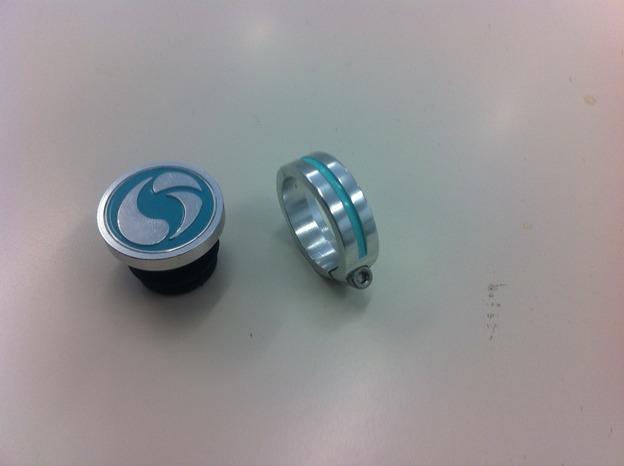

Refer to current drawings for the designs of the two existing parts.

The real challenge is the end plug/cap which currently has 2 issues. The existing solution is a standard bar tape end plug with a CNC cap glued to it. The whole plug can be knocked and come loose or be lost, and the outer cap can also be knocked off the inner plug and similarly become loose and get lost. Any type of glue fixing between the two parts will not work long term. Our initial thought for the new solution was some kind of expander inner plug to lock the tape into the bar with a cap that threads on over the top. Entries can either work on a refinement of this theme or a completely differant approach.

The finishing ring at the other end of the bar tape has less technocal issues but needs to be aesthetically matching the end plug and needs to both securely fix the end of the bar tape in place and its self to the bar.

Requirements

  • The End Plug holds the bar tape in place and should be able to be both locked and unlocked

  • The End Plug has an outer cap concealing the internal plug and locking system which must be removeable but not come off under use

  • The End Plug has the ability for laser etched logos on the outer cap face

  • Finishing ring to fix end of bar tape in place and its self to the bar

  • Both parts are to be seen as parts of a singular solution and be aesthetically matched

  • Material aluminium

  • We need versions for 2 different handlebar diameters 22.2mm and 23.8mm

  • Please see cad files attached

Download specification

Rules

  • Winning design will be chosen based on the design and functionality

  • The competition is open to everyone

  • Team entries are welcome

  • You can submit several designs

  • Only models uploaded to GrabCAD library will participate in the competition

  • Tag your model with “flyingdesign” to make it easier to find

  • The Challenge starts 27th January 2012 and ends February 17th 2012 23:59 Last Time Zone.

  • Privately uploaded models will be made public after the competition deadline

  • Models can be done in any CAD software as long as a STEP or IGES files are also uploaded

  • Competition winner will be announced in GrabCAD’s blog

  • Only models uploaded through this challenge page will participate in the competition

Prizes

1st Prize

Choice of any of our 4 Base Urban models: http://www.baseurban.com/

2nd Prize

GrabCAD motivation package

3rd Prize

GrabCAD motivation package

4th Prize

GrabCAD motivation package

5th Prize

GrabCAD motivation package

6th prize

GrabCAD motivation package

About the jury?

The winner will be selected by a joint jury of Tern Bicycles and GrabCAD and announced on the GrabCAD blog.

About Flying Machine

At Flying Machine we design distinctive, superior quality bicycles for individual customers and businesses worldwide;
provide clients with bicycle design and production services beyond the sphere of traditional bicycle manufacturers; coordinate the manufacture and delivery of bicycles to the customer’s doorstep.

Flying Machine encompasses three unique components:
1) Sexy Bicycles
2) Base Urban
3) Special Projects

Bicycles are designed in-house at our studio in Mount Lawley, Perth, Australia. Production is outsourced to a variety of high quality manufacturing partners.

By outsourcing all of our production requirements, we allow ourselves the flexibility of a boutique design studio while enabling the capacity to meet client requirements from limited edition ranges to high volume supply.

Our design team has backgrounds in architecture, interiors, fashion, fine art and visual communication, textiles, graphic, product and industrial design including bicycle design.

Flying Machine brings passion, creativity, attention to detail and the drive to exceed expectations to every angle of our business.

Through our own brands and in partnership with our clients, our vision is to make the world a better place by promoting and providing bicycles which are beautiful in both form and function.

Flying Machine bicycles have been sold globally including the USA, UK, Canada, Spain, Germany, France, Finland, Switzerland, Singapore, Taiwan and Australia.

More info: http://flyingmachine.com.au/
