Chain wear indicator

Medium

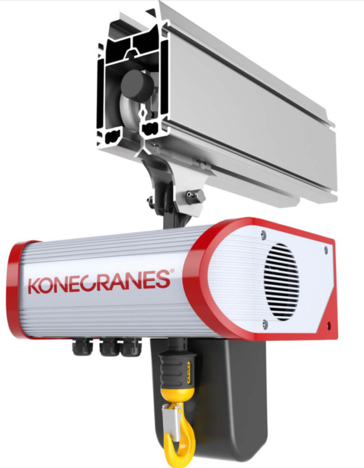

Konecranes challenges you to invent a chain wear indicator.

Most hoists are chain hoists, for their strength and reliability, and used for lifting and lowering free movable loads. The lifting movement is generated by an electric motor. The pictures below show the assembly and a chain. During lifting the chain wears. This is acceptable up to a certain level, as defined by the ISO 7592.

Konecranes is looking for new Ideas to detect the chain wear of the chain in a chain hoist. When lifting the chain. At the moment the chain wear is measured by hand with a sliding caliper. Be creative and try to come out with something completely new and innovative by either upgrading the current solution or re-designing the whole concept. Good luck!

Requirements

  • Wear limit is reached according to ISO 7592, if any of the following conditions are observed:
    a) Cracks
    b) Serve nicks or gouges
    c) Visible distortion
    d) Severe corrosion
    e) Deposits which cannot be removed
    f) The gauge length measured over an 5, 7, 9 or 11 links as appropriate exceeds that of the unused chain by 2% if power driven
    g) If interlink wear leaves a rough surface, this indicates that rapid wear is occurring and the chain should be rejected immediately

  • Please note (added Dec 11, 2012):
    1. Chain Sizes in mm: 4x11; 5x14; 7x20; 9x27; 11,3x31
    2. Budget: Production costs 50€ or ~$65 USD.
    3. The solution should be mechanical and should be onboard (part of the hoist). No service tools, please.
    4.Ist not allowed to create a new chain!
    5. A Tip for design: As the chain wears the links elongate, the pitch circle increases. Perhaps this can be useful for some solutions. For a visual of this effect, download specifications, below.

Download specification

Rules

  • Design can be made in any software as long as Step file is provided.

  • Winning design will be chosen based on the rules and requirements.

  • The competition is open to everyone.

  • You can submit several designs.

  • Team entries are welcome. In case of team win, prize money will be transferred to team leader who is solely responsible for splitting it among team members.

  • Only models uploaded to GrabCAD library through this challenge page will participate in the competition.

  • Tag your model with “chain wear indicator”. Only entries with valid tag will participate!

  • You may upload a private model but you need to share access with kaspar@grabcad.com and Dominik.Mueller@konecranes.com. This will help the judges see your entry.

  • Privately uploaded models will be made public after the competition deadline.

  • Competition starts: 30th of October, 2012.

  • Competition ends: 15th of January 2013 23:59 in the last Time Zone.

  • Competition winner will be announced here on this Challenge page before 15th of February 2013.

Prizes

Cash prizes of $6,000

1st Prize

$3,000 cash

2nd Prize

$2,000 cash

3rd Prize

$1,000 cash

4th Prize

GrabCAD T shirt

5th Prize

GrabCAD T shirt

6th Prize

GrabCAD T shirt

About the jury?

The jury will be comprised of Konecranes and GrabCAD engineers.

About Konecranes

Konecranes is a world-leading group of Lifting Businesses™, serving a broad range of customers, including manufacturing and process industries, shipyards, ports and terminals. Regardless of your lifting needs, Konecranes is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.

www.konecranes.com
