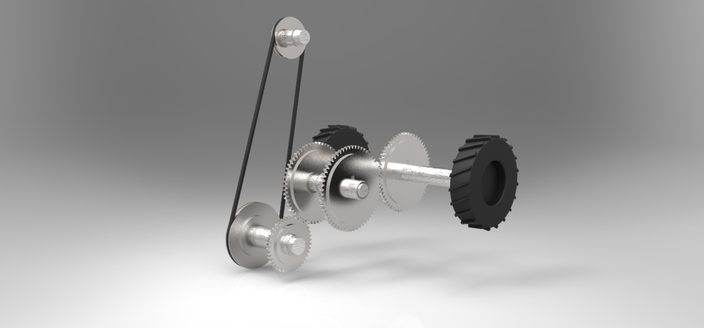

3d & 2d drawings + simulation of power transmission system

NX 7 Rendering Other CATIA STEP / IGES By Davin on 28 Jun 06:41 in Automotive Machine design Miscellaneous Tools

Select file:

pts.stp 2.8 MB V2 by Davin 11 months ago pts.igs 6.9 MB V1 by Davin 11 months ago pts using STL.stl 1.7 MB V1 by Davin 11 months ago
3D & 2D Drawings + Simulation of Power Transmission System
Tiny Tiny Tiny Tiny Tiny add

One of my college assignments, which is to design a power transmission system for a electric ATV (low speed, high torque)... still needs lots of improvement....

I’ve uploaded the whole file including the sketches and the simulation.........

Please use NX 7.5 or higher to view this

Comments:

  • Renato Lunardini Júnior
    Renato Lunardini Júnior 6 months ago

    muito bom!parabéns

  • akash
    akash 3 months ago

    is this motorcycle transmission system?

  • Davin
    Davin 3 months ago

    Not really...it is for ATV...it was one of my uni assignments.....the measurements was based on some calculations.......i'll see what i have first :P
