Angle disk 160mm

Rendering SolidWorks 2012 STEP / IGES Other By Bill Howarth on 28 Feb 09:06 in Aerospace Architecture Aviation Construction Fixtures Machine design Military Miscellaneous Tools

Select file:

Angle Disk 160mm.SLDPRT 7.7 MB V1 by Bill Howarth about 1 year ago Angle Disk 160mm.IGS 35 MB V1 by Bill Howarth about 1 year ago

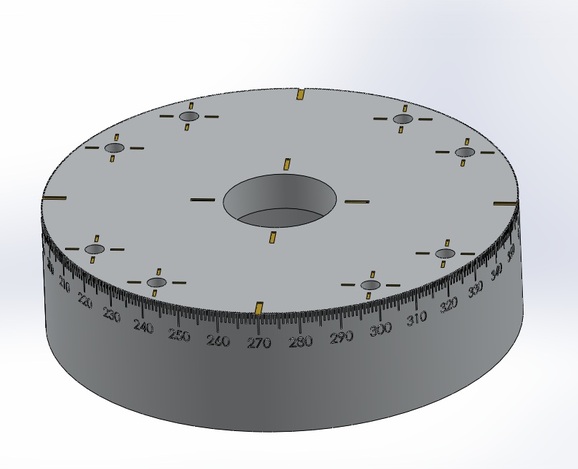

Angle Disk 160mm
Tiny Tiny Tiny add

An email request for protractor request from RICH GILLEN led to this modification.

This is a modified version of Hole drilling jig - disc 2

it includes angle index on outside diameter
