Atx motherboard tray

Autodesk Inventor 2012 STEP / IGES Rendering STL Other By Santiago on 03 Aug 01:09 in Electrical Miscellaneous

Select file:

motherboard tray.ipt 240 KB V1 by Santiago almost 2 years ago motherboard tray.igs 310 KB V1 by Santiago almost 2 years ago motherboard tray.stl V1 by Grabby The Bot 12 months ago

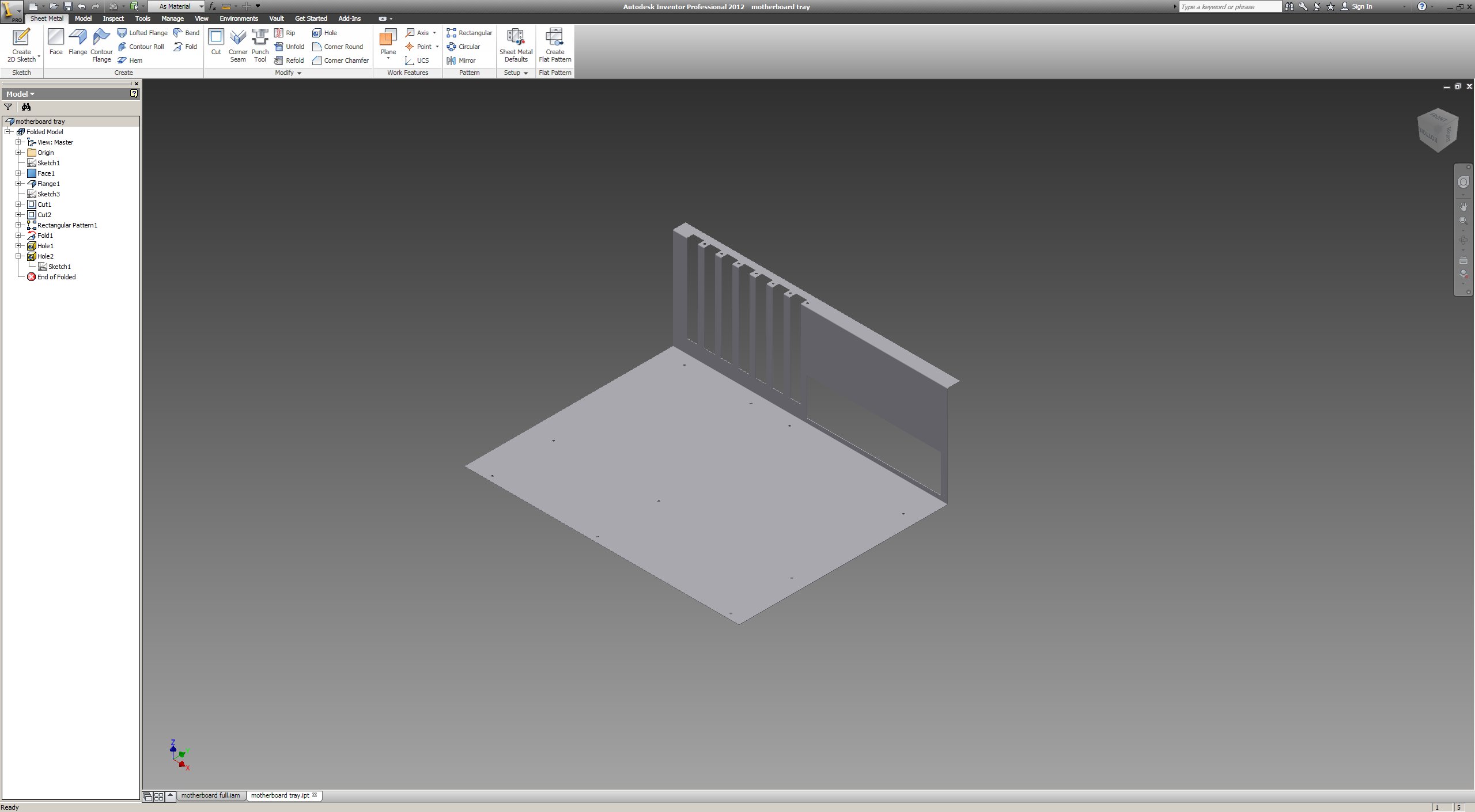

This is a Motherboard tray for ATX motherboards.
All the measurements taken from the ATX v2.2 specs.
If you find any errors, please let me know.

Comments:

View all comments (7)
scott 10 months ago
where did you get the offset from the top of the motherboard tray to the bottom of the I/O panel cutout, I'm designing my own case so I want to make sure I have the correct measurements.
Santiago 10 months ago
Check the files section of this model. I uploaded a rar file with the Atx 2.3 spcecs, the PCI 2.2 specs and the low profile pci specs too.
steven daugherty 6 months ago
do you have this in standard cad
