Bicycle suspension mono fork

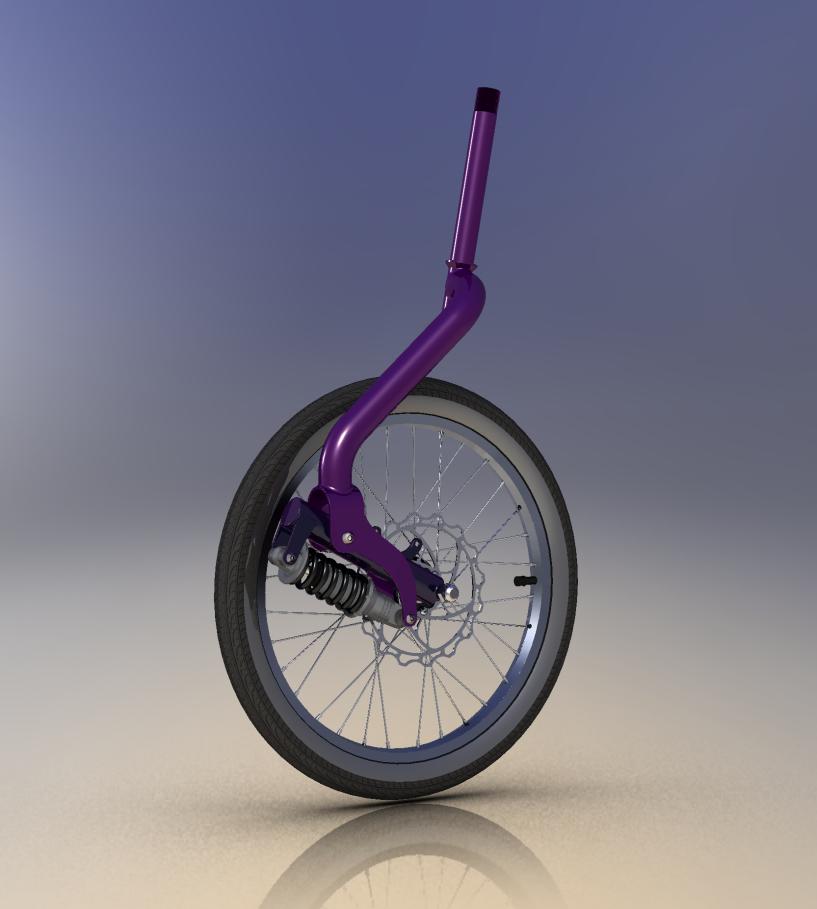

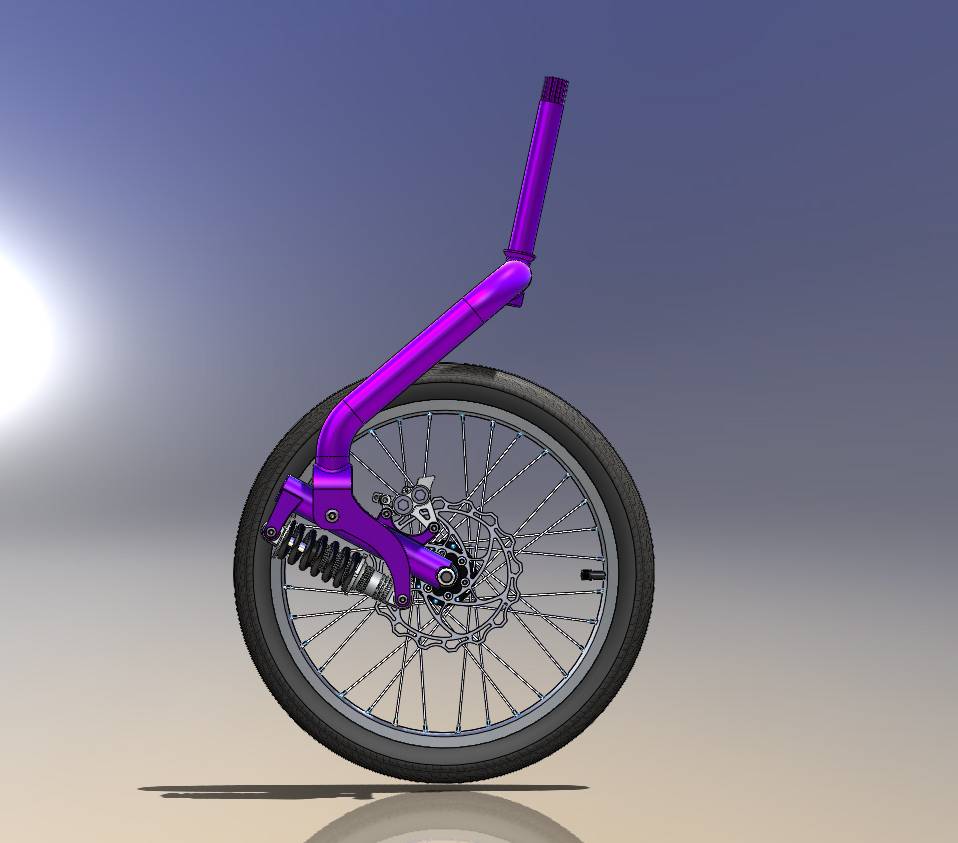

An assembly with sub-assemblies. Includes everything as on images. Included a complete assembly file of improved DNM DV-22 150mm shock absorber, a complete 18" front wheel with a disc Disc brake rotor from Indrek Narusk (thanks!) and all the details. If someone would care to make a nice rendering or animation, that would be great :)
I'm not sure how much of the functionality is kept in the STEP file.

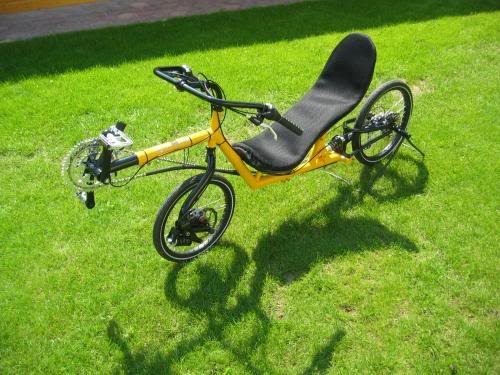

It was primarily designed as a front suspension fork for a lowrider recumbent bike, but it can also be used with a small folding bicycle or a delta configuration trike. The fork is used on Steintrikes "Speedster FS" bike. A photo of the actual bike is also included.
-
Download
Original: mono fork.zip22.5 MB
December 15, 2011 by Robert Stein2.43 MB
December 15, 2011 by Robert Stein -
Categories
Automotive
Construction
Sport
-
Tags
rotor brake bicycle hub fork disc wheel suspension mono dnm hope
-
Robert Stein uploaded "Bicycle suspension mono fork" 5 months ago
22.5 MB -
Robert Stein added a rendering 5 months ago
Comments -
Robert Stein added a rendering 5 months ago
Comments -
Robert Stein added a rendering 5 months ago
Comments -
Robert Stein uploaded a new format for original 5 months ago
2.43 MBComments -
Silvio added a rendering 3 months ago
Comments (10)-

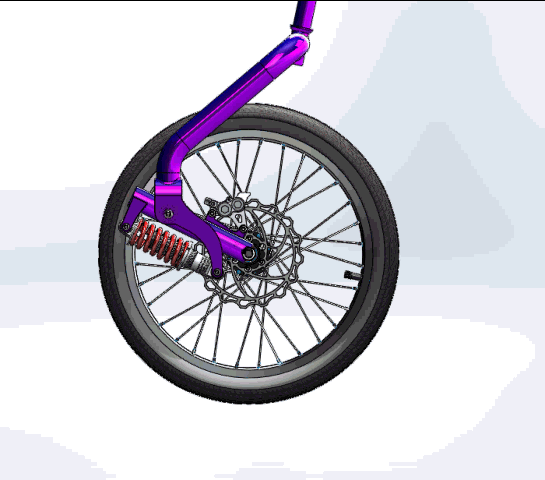

Gif
