Bijou model engine assembly with moving components

SolidWorks 2011 Rendering STEP / IGES STL Other By Matthew Stokes on 02 May 03:38 in Educational Machine design

Select file:

MME_4480_-_CAD_-_Bijou_Engine.STEP 5.6 MB V1 by Dusko Stupar about 1 year ago Bijou Engine.stl V1 by Grabby The Bot 12 months ago

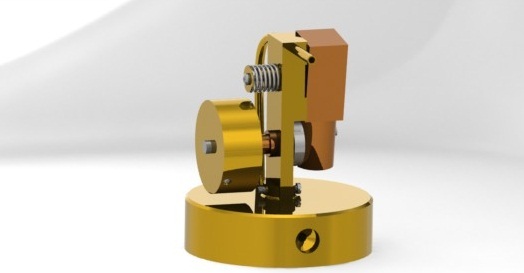

Bijou Model Engine Assembly with Moving Components
Tiny Tiny Tiny add

Bijou Engine for University Class MME 4480 Project 1

Complete With:

360 Animation, Cylinder Motion Animation, Fly Wheel & Piston Animation, Motion Analysis

Motion Analysis contains 2 plots:
1) Displacement of Cylinder
2) Velocity of Piston

Video containing real engine running
http://www.youtube.com/watch?v=0IiQDesJb3s
