Bike handlebar special collet v2
Another solution...

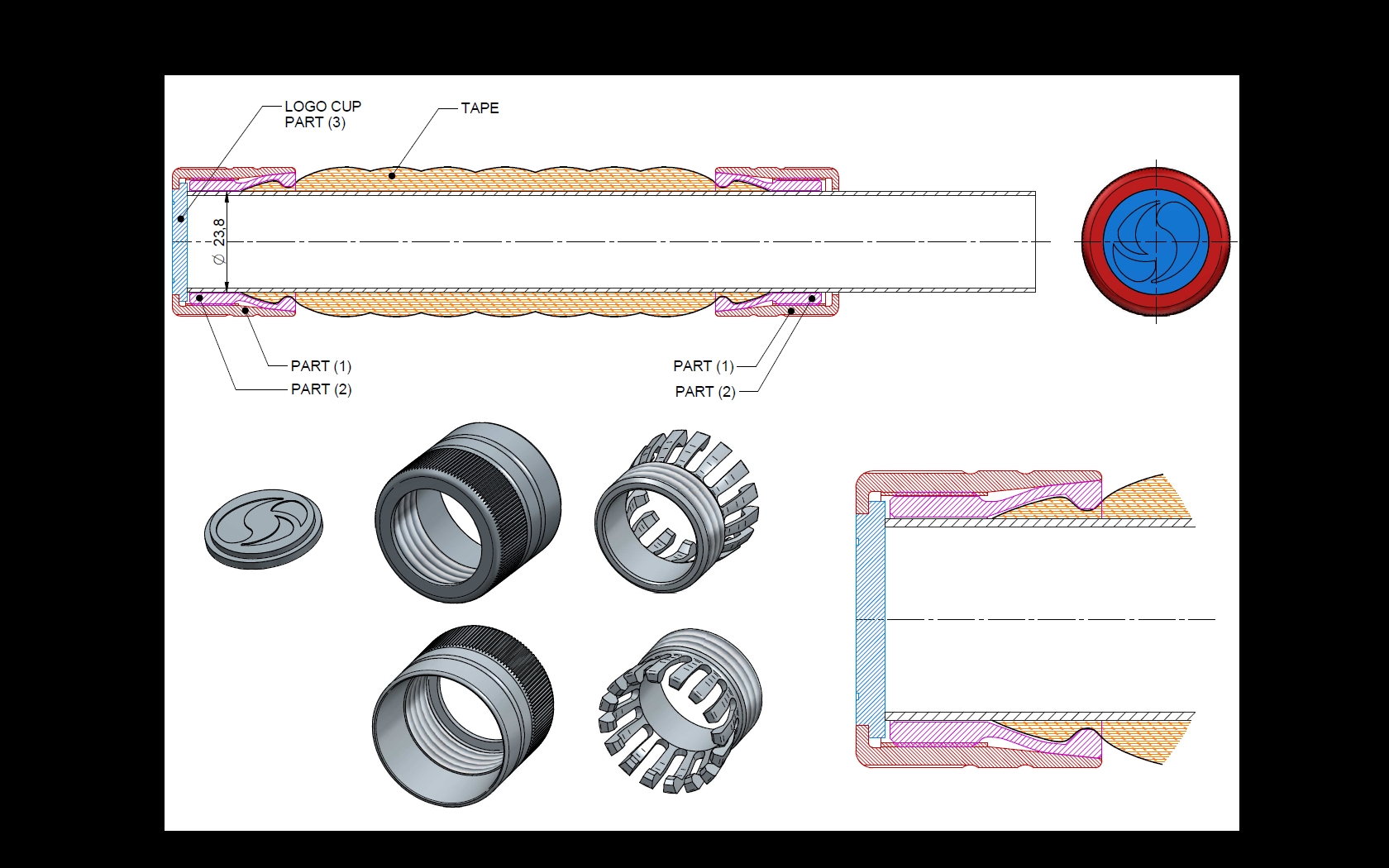

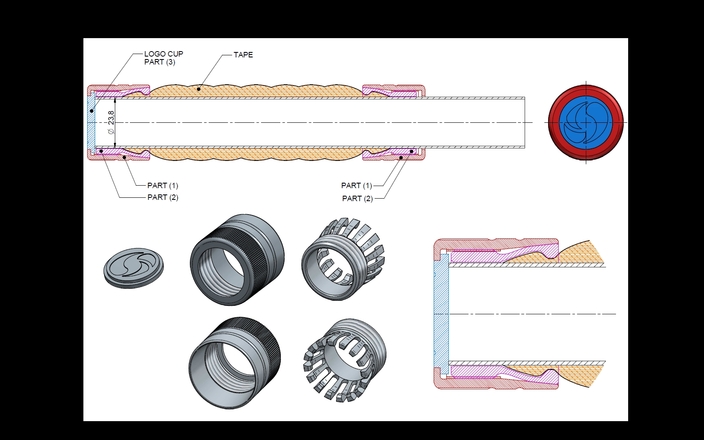

Idea a little bit similar to first one ( Bike handlebar special collet v1 ) but maybe better...
I will write about it later - but I think everyone understand this solutions.
The ble cup will be with logo.
This solutions alows to use this special collet on both sides of the handlebar.

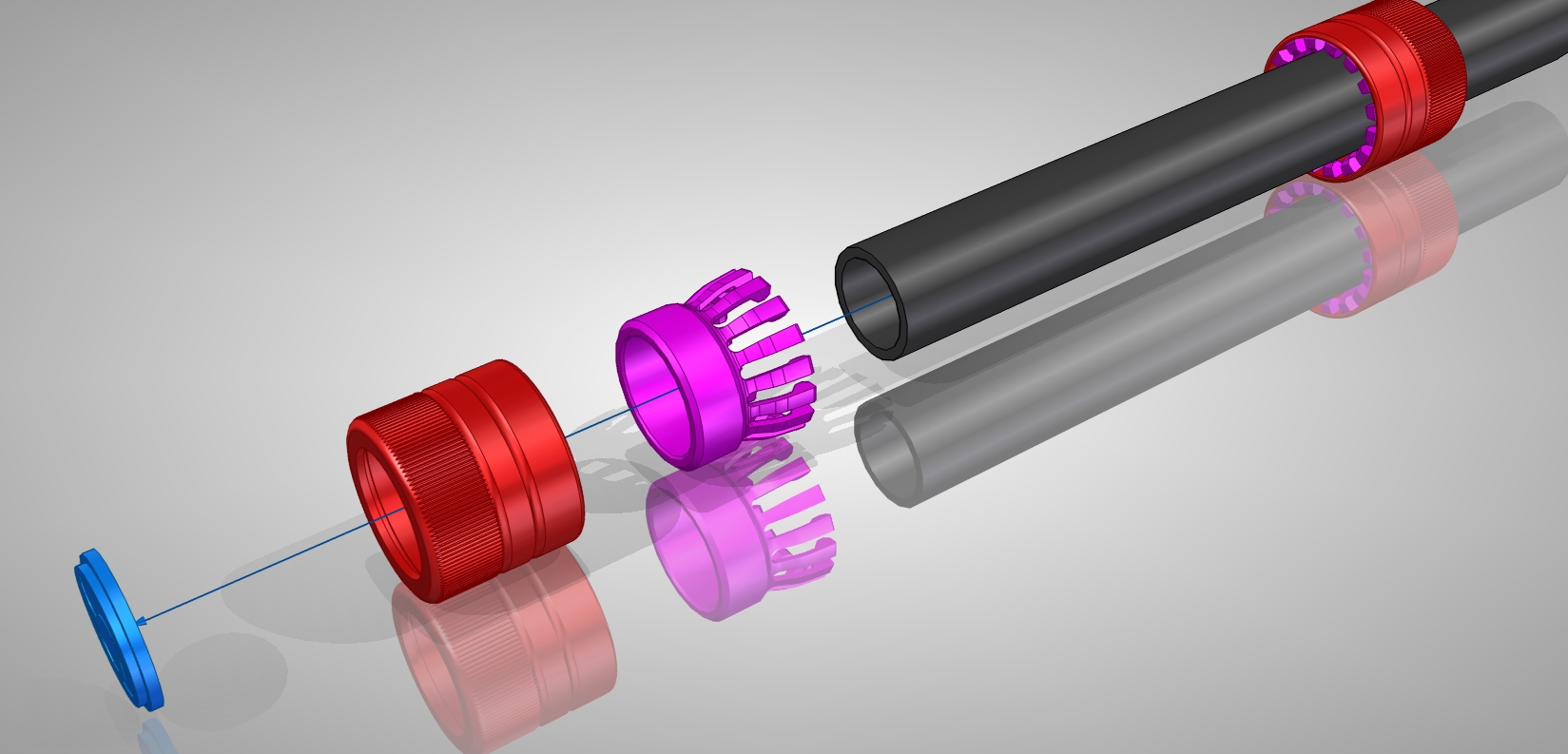

On one side you need to use this special collet with logo cup (blue one) and on the other side you use only special collet (gray+black) without logo.
In this solution you need to produce only 3 parts which are universal for both sides of handlebar tape.
-
