Bonelle tool and cutter grinder

Other Rendering STEP / IGES By Clive Fouche on 07 Sep 10:55 in Machine design Tools

Select file:

Bonelle Tool and Cutter Grinder Assembly.IGS 320 MB V1 by Clive Fouche 8 months ago

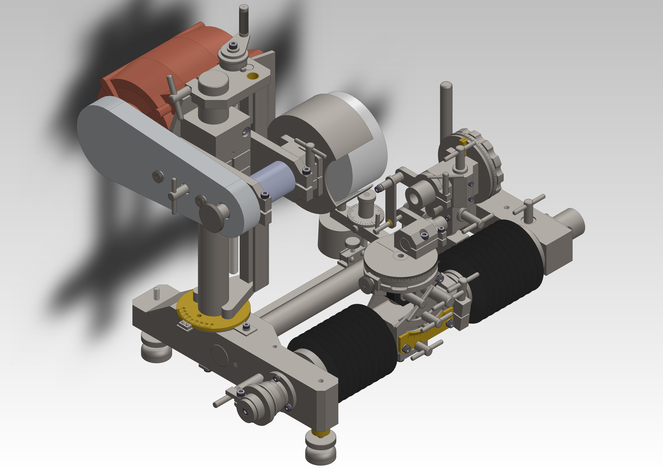

Bonelle Tool and Cutter Grinder
Tiny add

This model is devoleped from the drawings by J B D Willis which I have drawn using Solidworks. His site with the original drawings is http://homepage.ntlworld.com/j.b.d.willis/bonelle_tcg.htm
I have made some minor modifications the main one being the use of Metric fastners. I am new to Solidworks so excuse the assemblies being underdefined.
