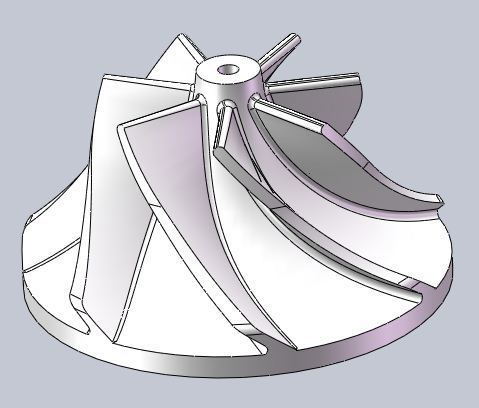

Centrifugal impeller with 7 blades

SolidWorks 2011 STEP / IGES STL Rendering Other By gwf421 on 29 Mar 14:05 in Aerospace

Overview
Files
Updates

Select file:

Centrifugal-impeller.SLDPRT 860 KB V1 by gwf421 about 1 year ago Centrifugal-impeller.IGS 1.7 MB V1 by gwf421 about 1 year ago Centrifugal-impeller.STL 1.1 MB V1 by gwf421 about 1 year ago

Finally got it right in SolidWorks 2011. You guys can see the procedure on the tree. IGES and STL formats are also added. The triangulation on the lower part is somewhat weird. Maybe the triangulation algorithm in SW has bugs.
