Centrifugal turbojet casing

SolidWorks 2012 STEP / IGES AutoCAD 2012 Rendering Other By Fahad Rafi Butt on 03 Aug 14:41

Select file:

centrifugal turbojet casing.SLDPRT 420 KB V1 by Fahad Rafi Butt 11 months ago centrifugal turbojet casing.IGS 490 KB V1 by Fahad Rafi Butt 11 months ago

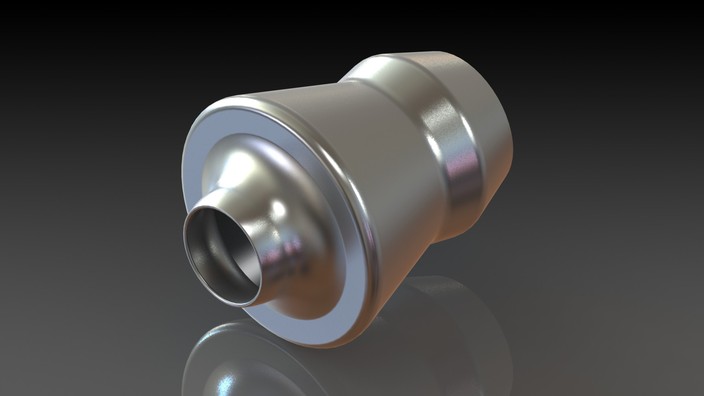

Centrifugal Turbojet Casing
Tiny Tiny Tiny Tiny Tiny add

arbitraty dimensions, just made for educational purposes! symmetric in two planes! uses centrifugal compressor and axial flow turbine!
