Compact　rotary axis unit

SolidWorks 2011 Rendering STEP / IGES Other STL By bettak on 03 Oct 04:44 in Tools

Select file:

ASSY.STEP 5.9 MB V1 by bettak over 1 year ago A axis unit parasolid.stl V1 by Grabby The Bot about 1 year ago

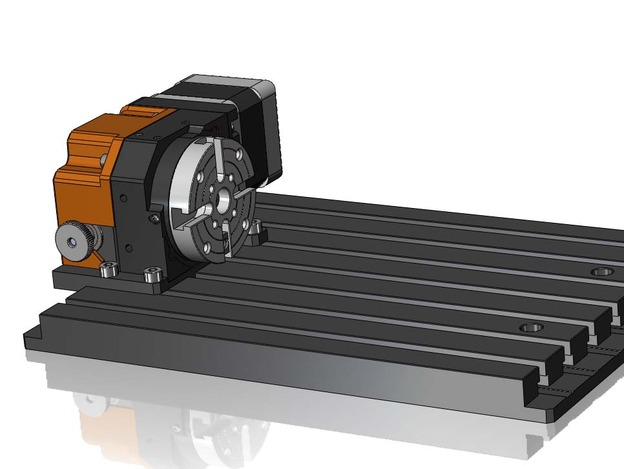

Compact　Rotary Axis Unit
Tiny Tiny Tiny Tiny Tiny add

Specifications:
Dimensions 99(W)x63(D)x55(H)mm
Gear ratio　1:15
Feed rate Maximum 20rpm
Resolution　0.015°/step(micro-step cotrol)

****There were 0.6 degrees of back lash of a prototype.
An improvement may be needed when this is nonpermissible by that. ....
