Cotter joint

Autodesk Inventor 2012 Rendering Other By Abhijeet on 23 Sep 14:28 in Machine design

Select file:

Cotter Joint Assembly.stp 55 KB V1 by Abhijeet over 1 year ago

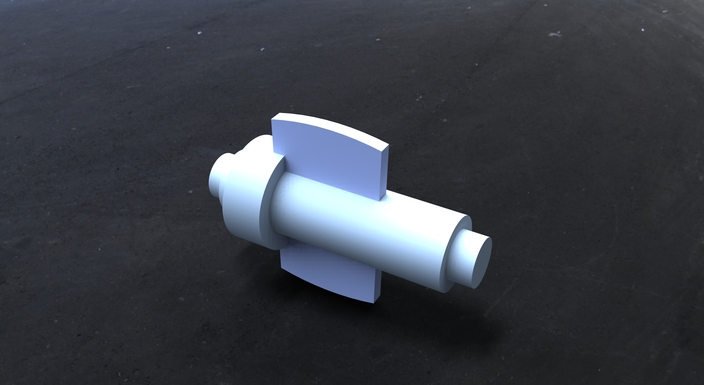

Cotter Joint
Tiny Tiny Tiny Tiny Tiny Tiny Tiny add

This is the model of a cotter I designed for the first time according to the design considerations from the Mechanical Engineering Data Book.It can bear a tensile load of 10kN.
