Crankcase complete sub assembly

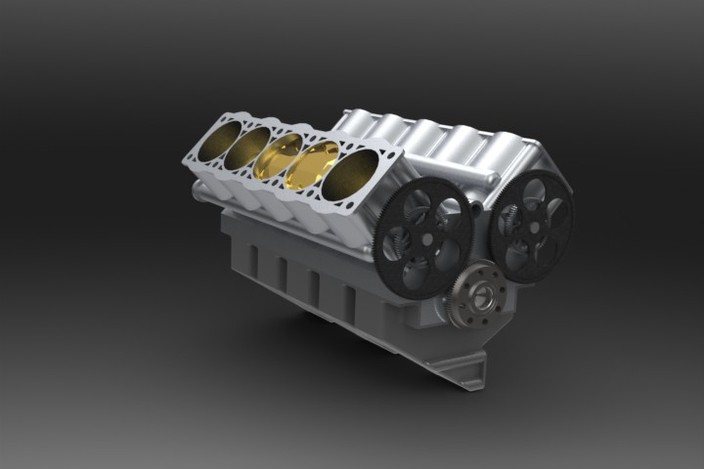

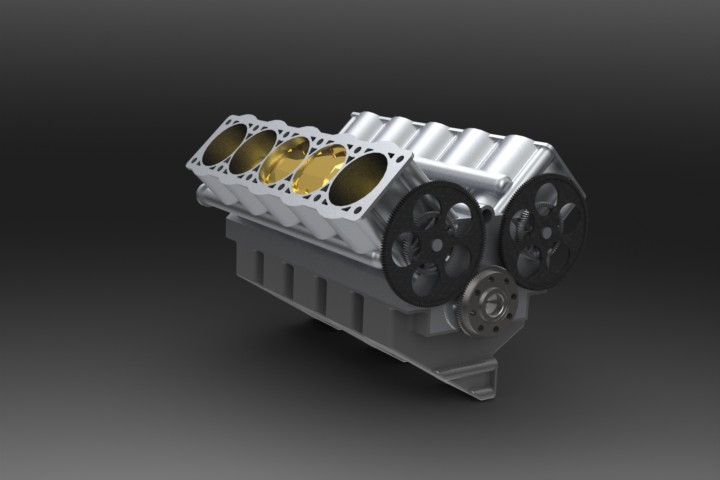

Crankcase, oil pan, crankshaft, connecting rods, pistons and timing gears.
Not really happy with the render, but the complexity is too much for my hardware, so I only gave it one go. Pistons are gold to imitate titanium nitride coating, but in reality it would be ceramic coated.
I did not include wrist pins, main bearings, or piston rings. They don't really serve a purpose in the assembly besides accuracy.
Oil Pan has been modified to provide a boltface for a dry sump pump.
IT'S BIG, IT'S HERE, NOW INCLUDES STEP FILE
-
