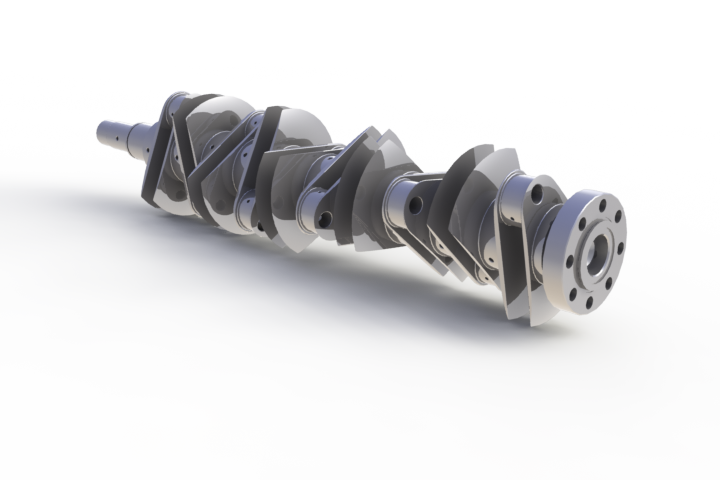

Crankshaft 10 cylinder By Chanson on 08 Oct 02:32

Is it for a specific engine or just an illustrative model?

This is for a virtual engine I have planned out, so the dimensions are not specific to any commercial vehicle. Bore spacing is 94mm, stroke is 78mm, and I used Evolution Motorsport's Porsche billet crank as a guide:
http://www.evomsit.com/EVOMS_Billet_Porsche_Crankshaft_1.jpg

very interesting but it seems the link on your comment is broken.

Works for me. Try copy/pasting the address. Or just do an image search for Porsche billet crank, should be the third picture if using Google.

it's working now, maybe the site was down last time I checked.

That's one beautiful model. Will you be posting more from the engine?

Thanks John, I really appreciate it. Sorry, probably not going to be seeing much if anymore of these. I would love to, but at the moment I am working some crazy hours. Hardly get enough time to take care of my at-home essentials so CAD will have to wait.....for now.

I do understand. In the same boat here.

good work,chanson

Thank you for the comments. As this was one of my first major contributes, I have uploaded a STEP file as well for all non-SW users. Enjoy

Thanks!

Great cutter!

great job....

Good job Chanson:)
