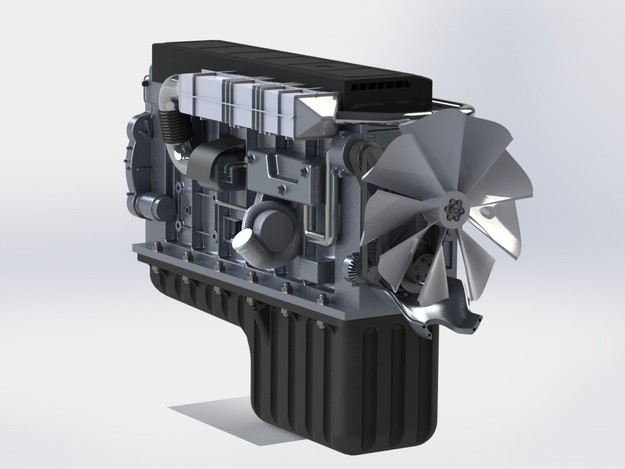

Detroit diesel engine 13

STEP / IGES Rendering Other By Michael Fritzenwallner on 10 Aug 00:59 in Machine design

Overview
Files
Updates

Select file:

DetroitDiesel13.STEP 23 MB V1 by Michael Fritzenwallner 10 months ago

This is my model after 3 days of work (and studying pictures of the engine).
Please excuse the lack of High-res rendering with appropriate materials and light setup.

The challenge was.. indeed very challenging for me, because i´m a novice in cad (Started with Solidworks about 6 months ago.)

I hope you like it!

Note: Sorry for the dark plane visible on some renderings.

Comments:

farzin 9 months ago
your model was great too,shamefully,in my opinion at least there were 4 better designings that the winner designing,deserves to win.
