Engine mount single

SolidWorks 2012 Rendering Other STEP / IGES STL By Aled J Taylor on 19 Jul 21:54 in Aerospace Aviation Miscellaneous

Select file:

Engine Mount 1 Assembly.x_t 4.1 MB V1 by Aled J Taylor 10 months ago Engine Mount 1 Assembly.IGS 23 MB V1 by Aled J Taylor 10 months ago Engine Mount Assembly.STL 13 MB V1 by Aled J Taylor 9 months ago

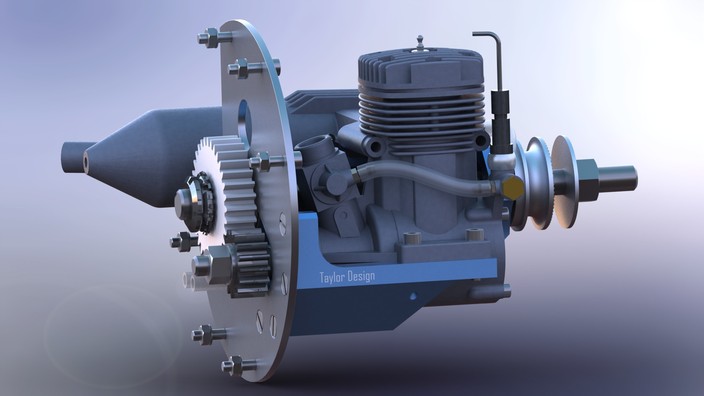

Engine Mount Single
Tiny Tiny add

This is a mounting for a OS 0.61 engine that includes a gearbox giving a 2:1 reduction ratio.

The engine is fitted backwards to maintain the correct rotation direction on the output shaft.

The engine was downloaded from 3D ContentCentral.

A two engined version of this mount is available here:

Engine Mount Twin

A three engined version of this mount is available here:

Engine Mount
