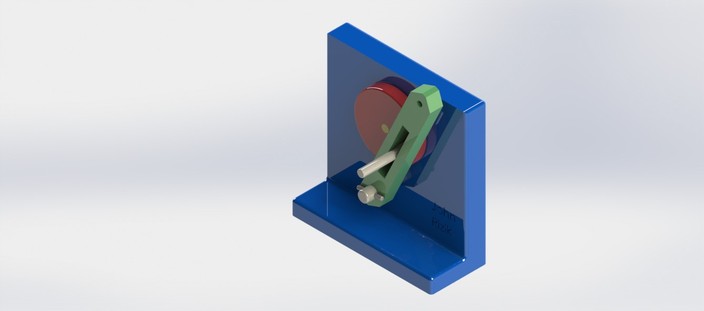

Pin and slot mechanism. it is used in applications where a slow, powerful working stroke is desired in combination with a rapid return stroke.
