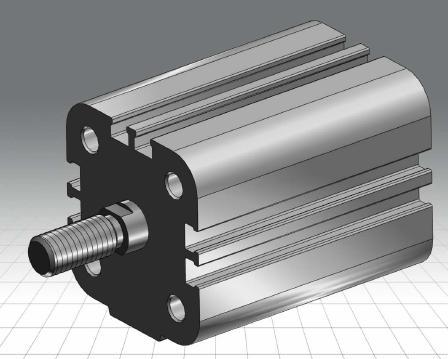

Festo dbl acting advu 32 25

STEP / IGES Rendering Other By ASH on 11 Apr 16:07 in Miscellaneous

Overview
Files
Updates

Select file:

156044 ADVU-32-25-A-P-A---(asm_0).igs 700 KB V1 by ASH about 1 year ago

Stroke: 25 mm
Piston Diameter: 32 mm
Cushioning: Flexible Cushioning Rings/Plates at Both Ends
Assembly Position: Any
Mode of Operation: Double-Acting
Design Structure: Piston
Working Pressure: 1 - 10 Bar
Operating Medium: Dried Compressed Air, Lubricated or Unlubricated
Corrosion Resistance Classification CRC 1
Ambient Temperature: -20 - 80 °C
Theoretical Force at 6 Bar, Return Stroke: 415 N
Theoretical Force at 6 Bar, Advance Stroke: 483 N
