Gearbox

Rendering SolidWorks 2011 Other By Seth Miley on 20 Feb 06:24 in Machine design

Select file:

Model currently has no 3D-viewable files

Tiny Tiny Tiny Tiny Tiny Tiny Tiny
add

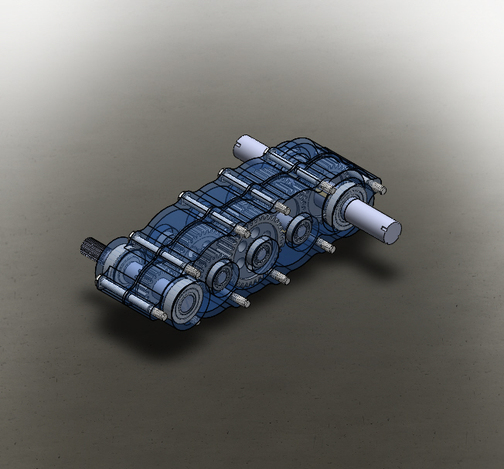

This is a custom gearbox for a 10 HP engine. The gear files are from RushGears.com modified by me. The bearings are from McMaster.com
This box has 1:8 reduction. 1:2 on first three shafts and 1:1 on the last shaft to get the rotation in the correct direction.
