Gearbox

Autodesk Inventor 2012 Rendering Autodesk Inventor 2013 AutoCAD STEP / IGES By Manolis Theofilos on 10 Apr 15:29 in Electrical Machine design Miscellaneous

Select file:

gearbox.stp 7.4 MB V1 by Manolis Theofilos about 1 year ago
Tiny Tiny Tiny Tiny Tiny Tiny Tiny Tiny Tiny
add

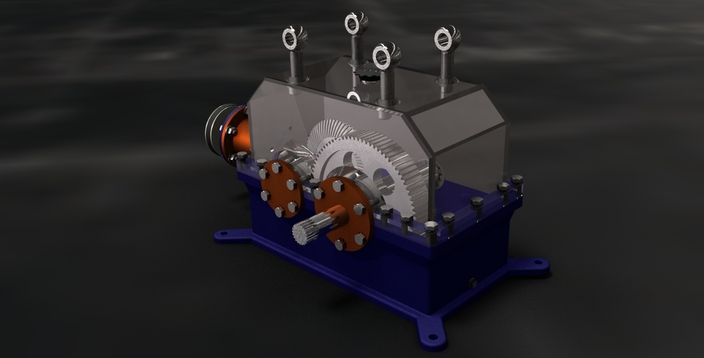

A 2 stage gearbox driven by an electric motor via a v-belt.
The 1st stage is a set of bevel gears with a transmission ratio of 4.3
The second stage is a set of spur gears with a transmission ratio of 3.5
Module is 2 for both
The electric motor is made by Tomas and it can be found here: Siemens 1LA9053 4LA91
