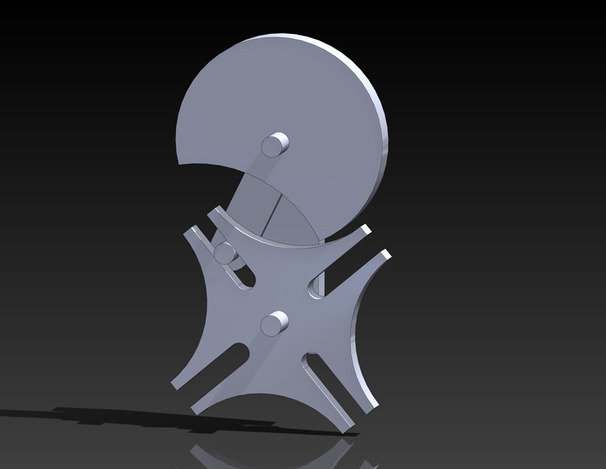

A simple model showcasing the "physical dynamics" feature in SolidWorks, which use model geometry instead of mates to simulate motion. (See renderings for screenshots)

Select from the assembly top menu: Tools->Component->Move and check "Physical Dynamics". Drag the top rotor and watch how the Geneva wheel responds. Very handy feature....
