Helical elliptical axis/trajectory spring

STEP / IGES Rendering Pro/Engineer Wildfire Other By Sumit Luthra on 23 Jun 13:22 in Architecture Educational Furniture Household Interior design Marine Miscellaneous Tools

Select file:

spring_on_elliptical_spring.igs 4.7 MB V1 by Sumit Luthra 11 months ago prt0009.prt.3 4.5 MB V1 by Sumit Luthra 11 months ago

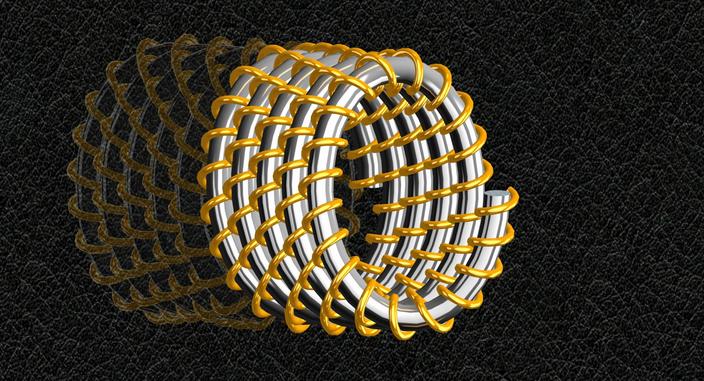

Helical elliptical axis/trajectory Spring
Tiny Tiny add

Spring Wrapped on another bigger elliptical spring.

Comments:

  • Sudhir Gill
    Sudhir Gill 11 months ago

    I like the name also... :) :)

  • Sumit Luthra
    Sumit Luthra 11 months ago

    Thanks Sudhir... I have worked a lot on different types of springs in ProE. These are hard to make in ProE. I will be giving its tutorial also.. :)

  • Sudhir Gill
    Sudhir Gill 11 months ago

    I know these are hard to make in Pro/e. In SW these are piece of cakes.. :) I am looking forward to tutorial.. :)
