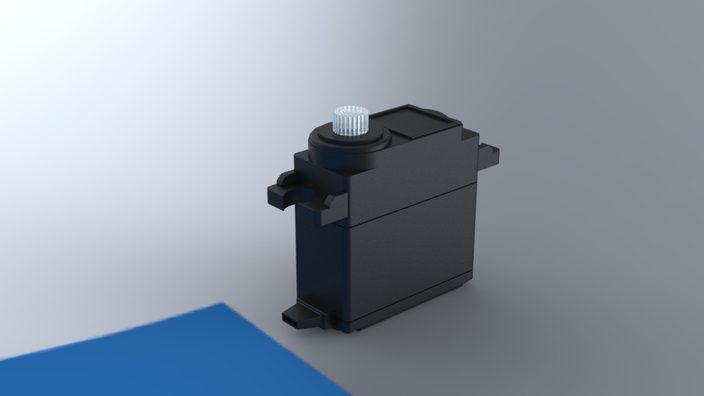

Hitec hs-85bb servo

Rendering PTC Creo Elements STEP / IGES Other By Alexander Papadopoulos on 28 Jan 15:03 in Electrical Machine design

Select file:

hs-85bb_asm.stp 710 KB V1 by Alexander Papadopoulos over 1 year ago hs-85bb.stl 2 MB V1 by Alexander Papadopoulos over 1 year ago

Hitec HS-85BB Servo

DETAILED SPECIFICATIONS

Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.16sec/60 degrees at no load
Operating Speed (6.0V): 0.14sec/60 degrees at no load
Stall Torque (4.8V): 41.66 oz/in. (3kg.cm)
Stall Torque (6.0V): 48.6 oz/in. (3.5kg.cm)
Operating Angle: 40 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8mA/idle and 240mA no load operating
Current Drain (6.0V): 8.6mA/idle and 260mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Direct Drive
Bearing Type: Single Ball Bearing
Gear Type: All Nylon Gears
Connector Wire Length: 6.29" (160mm)
Dimensions: 1.14" x 0.51"x 1.18" (29 x 13 x 30mm)
Weight: 0.77oz (21.9g)
