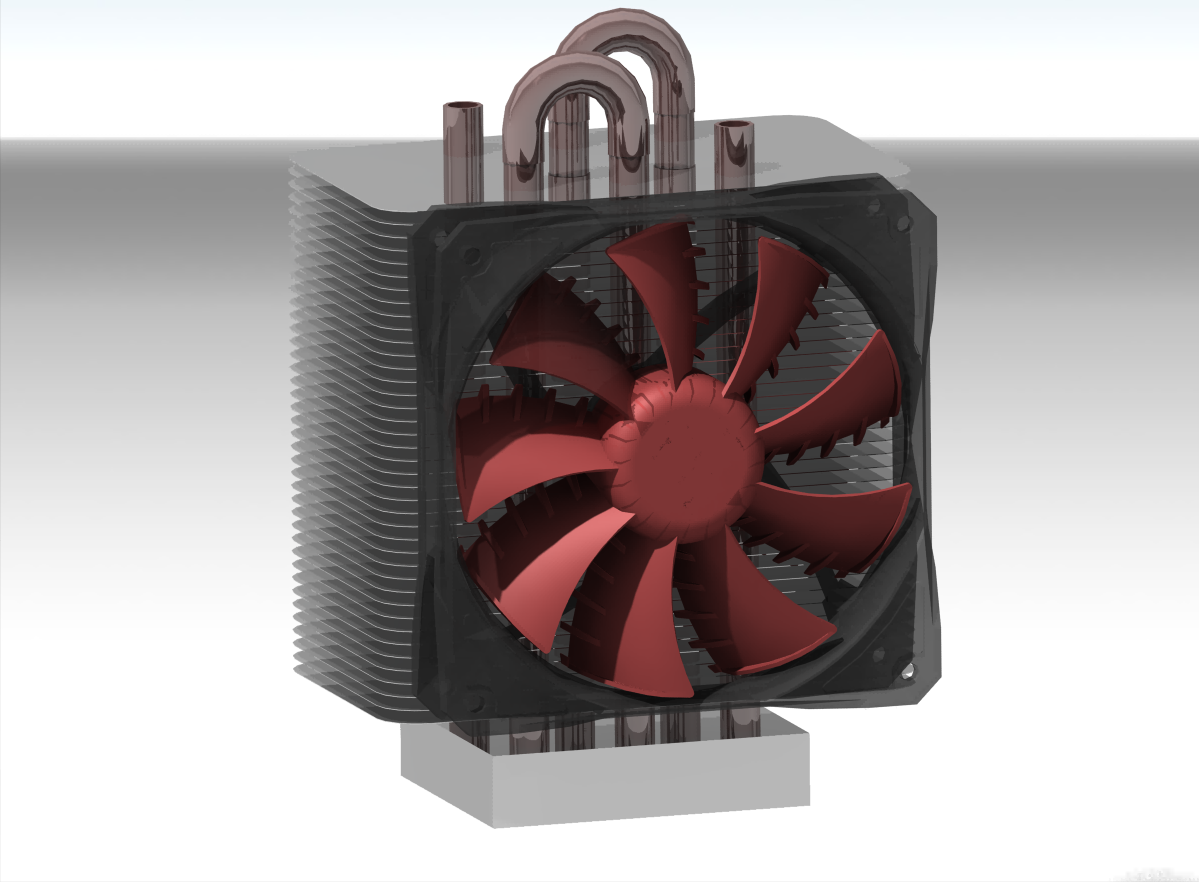

Homemade design heatsink & zf3 fan 120mm By richardphat on 04 Jan 04:14

The heatsink, the copper pipe, the thin aluminium plates and the U one have been designed by me for fun purpouses.
Basic dimension has been measured to assure a logic size.

The ZF3 Fan 120mm have been modeled by Daniel Dubbé, all credits regard the fan belongs to him.

****************
I tried to imagine an heatsink that could be hybrid cooling.
While the air fan cool down the heatsink, the water will also play its role and to ensure a much more efficient.

Also, since this is my first designed product, there are lot of flaws.
Such as the heavy weight of the heatsink, no screws/rubber to maintain the fan and the heatsink, etc.
