Hpgr - mining rolls crusher

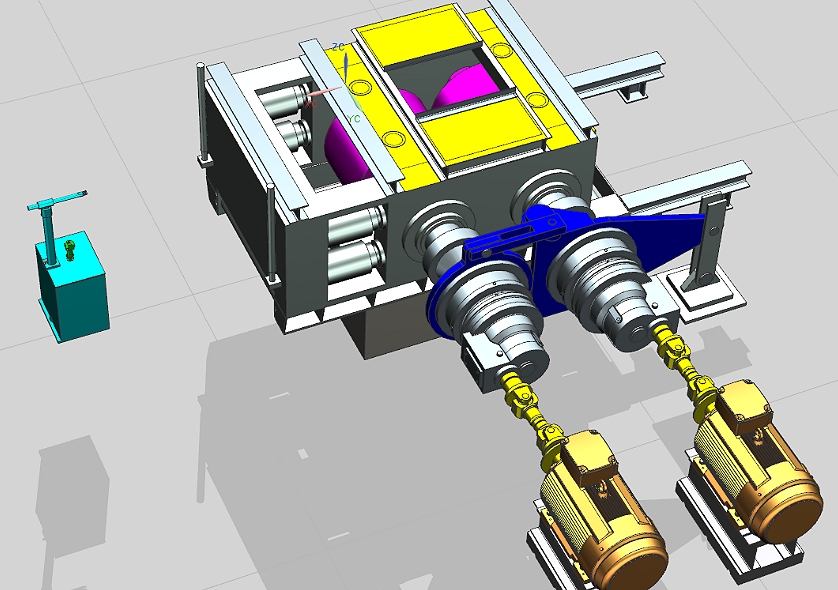

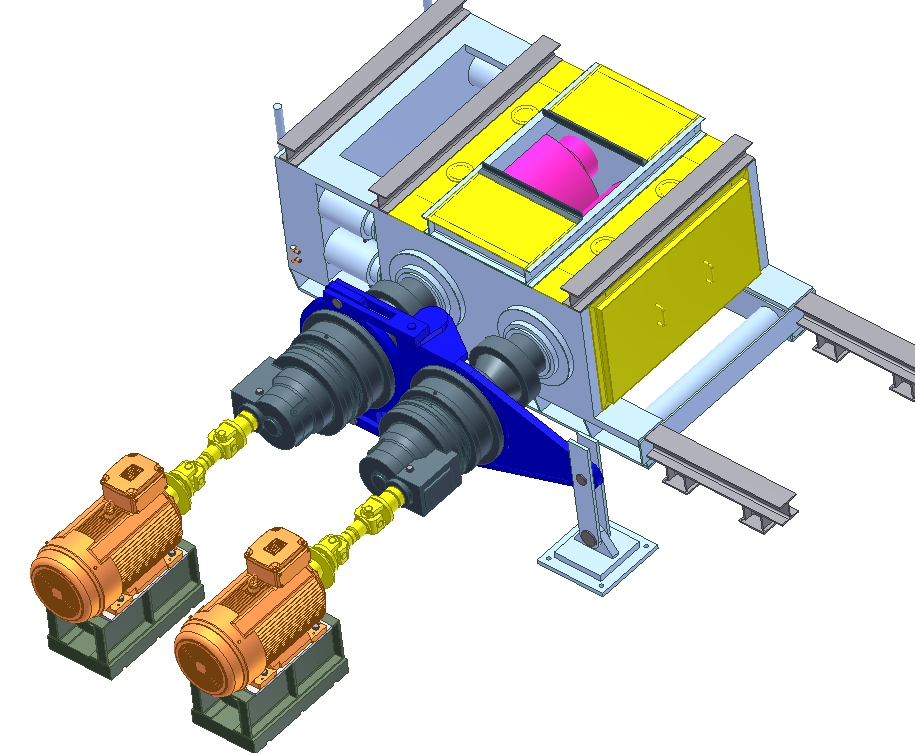

High Pressure Grinding Rolls (HPGR) - small version used in mining plant model. 400kW motors from Weg. Universal joints were fully flexible on the original model to show the off-set of the rolls and their crushing movement.
Plant layout of mining operation from crushers, conveyors, separation, filter presses etc. Xeon, 36GB, SSD, Quadro 4000 used to get the very large assemblies together to display in one man's lifetime.
-
Download
Original: HPGR Assy.rar2.57 MB
November 17, 2011 by oldgrey1 -
Categories
Miscellaneous
-
Tags
equipment mining
I'm interested to produce this type of product here in Brazil, besides cone crusher, hammer mill and ball mill. I wonder if you could help me with some material (worksheet, spreadsheet, pdf) or any other material aid to calculation and design to develop a line of equipment.
2 months ago
