J on cylindrical surface

SolidWorks 2010 Rendering Other By Adam Pohl on 09 Nov 03:58 in Miscellaneous

Select file:

CUT A J IN THE SIDE OF A CYLINDER.SLDPRT 180 KB V1 by Adam Pohl over 1 year ago

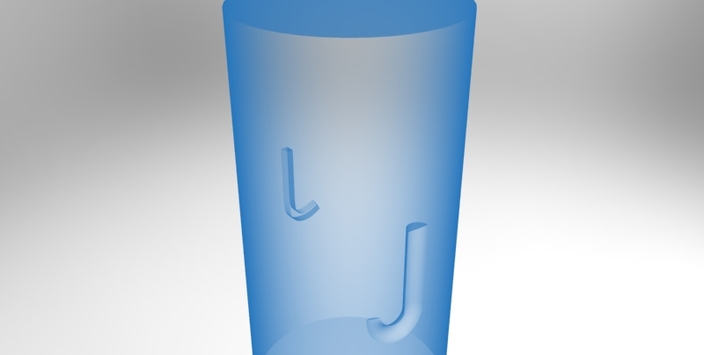

J on Cylindrical Surface
Tiny add

A response to "How to cut a j in the side of a cylinder?" One side has a wrapped text J the other side is a sketched J with a swept cut.

Comments:

Please log in to add comments.

Log in
Download all
240 KB (3 files)
View files
  • Total downloads 18
  • Total comments 0
  • Total pins 0
  • Total renderings 1
