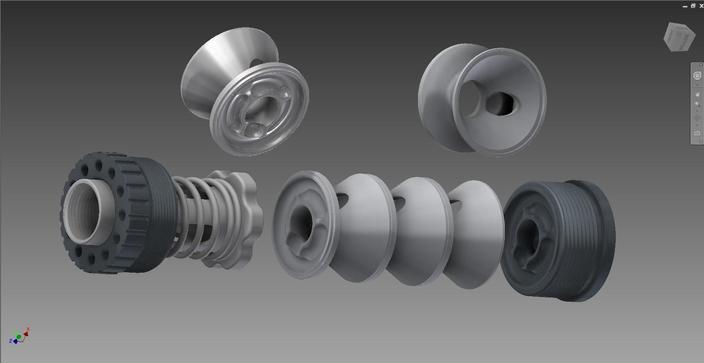

K-Baffles Suppressor for 9 mm Pistols

Other Rendering By PaulNoiseLess on June 16, 2012 21:02 in Military

Caliber: 9 mm

Specs:
6.125 inches long x 1.25 inch OD x 9.625 ounces
5.5 K-Baffles

Materials:
Tube and Caps: Titanium Grade 9
First K-Baffle: Stainless Steel 304L
Other Baffles: Aluminum 6061/T6

Nielsen Device (Recoil Booster @ 23 Pounds): Stainless Steel 316L (6xPOI Shift + Zero rotation)

Fully serviceable (take apart)

Piston Threads to 5/8 - 24 TPI.

Comments:

  • jordan bourcier
    jordan bourcier over 1 year ago

    would someone be able to machine the baffles for me?

  • hector elizondo
    hector elizondo 8 months ago

    is there a way I can get the solidworks file for the booster or all the thing,I can make the can and I will file a fourm 1

  • josh
    josh 11 days ago

    Here is the question for you Paul that I pulled off the top of my head.
    Your can becomes entirely steel. Do you add or lesson the 23pound spring and would this change cycle the action of the pistol?
