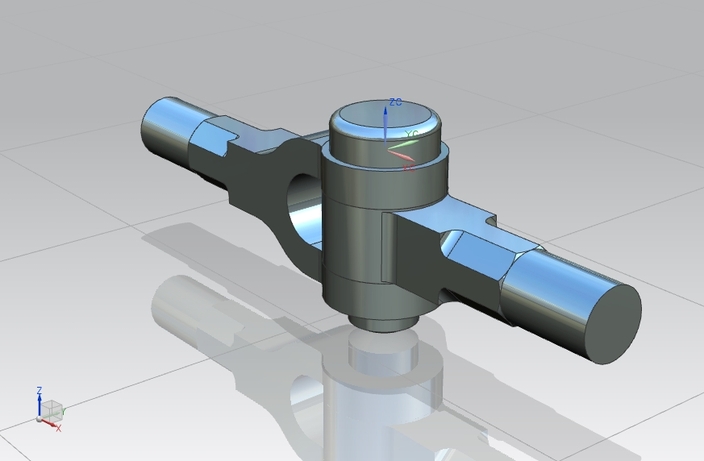

Knuckle joint

NX 7 Rendering STEP / IGES STL Other By TaUsEeF AlaM on 09 Mar 20:44 in Machine design

Overview
Files
Updates

Select file:

knucklejointSTEP&IGS.stl 120 KB V1 by Grabby The Bot 12 months ago

Knuckle Joint is design to take a 70 KN pull...Having
Tensile Stress (Rod) :: 420 MPa
Crushing Stress (Rod) :: 420 Mpa
Tensile Stress (Pin) :: 720 MPa
Shearing Stress (Pin) :: 395 Mpa
Crushing Stress (Pin) :: 720 Mpa
With Factor Of Safety 6
