Miniature steam engine

AutoCAD STEP / IGES STL Autodesk Inventor 2012 Rendering By Manolis Theofilos on 27 Mar 22:42 in Automotive Machine design Miscellaneous

Select file:

Steam engine Assy_1.stp 1.2 MB V1 by Manolis Theofilos about 1 year ago Steam engine Assy_1.stl 2.7 MB V1 by Manolis Theofilos about 1 year ago Steam engine Assy.stp 2.4 MB V1 by Manolis Theofilos about 1 year ago Steam engine Assy.stl 3.4 MB V1 by Manolis Theofilos about 1 year ago
Tiny
add

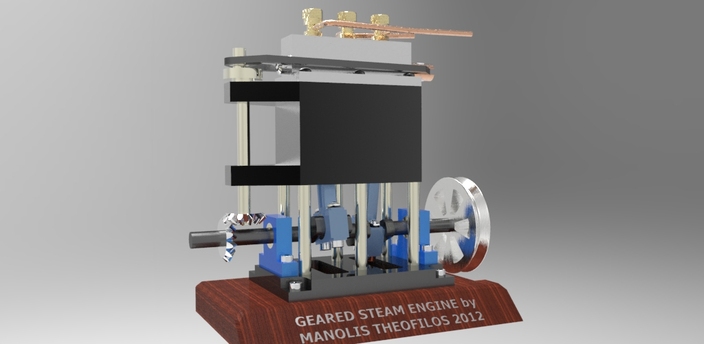

A miniature steam engine.
It has two cylinders and uses a set of bevel gears to move the valve.

I am only uploading the video so feel free to render the model.

Revision A.
-I added a flywheel with a groove so that a drive belt can be fitted. Feel free to use the engine in a larger model
-New video
-Desktop base
