Moutain bike

SolidWorks 2012 Rendering STEP / IGES STL Other By David Nelson on 14 Jan 22:00 in Machine design Miscellaneous Sport

Select file:

Conjunto Bicicleta.STEP 32 MB V1 by David Nelson over 1 year ago Bike.stl 8.5 MB V1 by Grabby The Bot 12 months ago conjunto_bicicleta.stl 4.9 MB V1 by rsahak 10 months ago

Moutain Bike

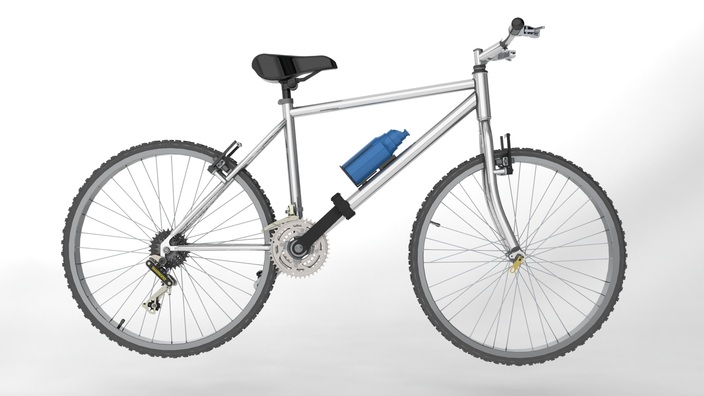

Here is a mountain bike.Still need to improove some points. I'm having problems installing the chain

Comments:

View all comments (12)
Anders L. Madsen 4 months ago
Nice model and high level of detail! It seems that your seat post tube, and steering tube is a bit too vertical. Try increasing the angle and it'll be a very realistic model!

This might be helpfull:
http://www.cyclingtipsblog.com/wp-content/uploads/2011/02/geometryChart.jpg

Good work ;-)
Fredrik 3 months ago
Not working for me, missing parts in Toolbox :(
Max Gloger 3 months ago
Good but the geometry is in correct. Seat tube angle should be about 67 degrees
