Natural Gas Compressor with Wakishaw Engine
Tiny Tiny Tiny Tiny Tiny add

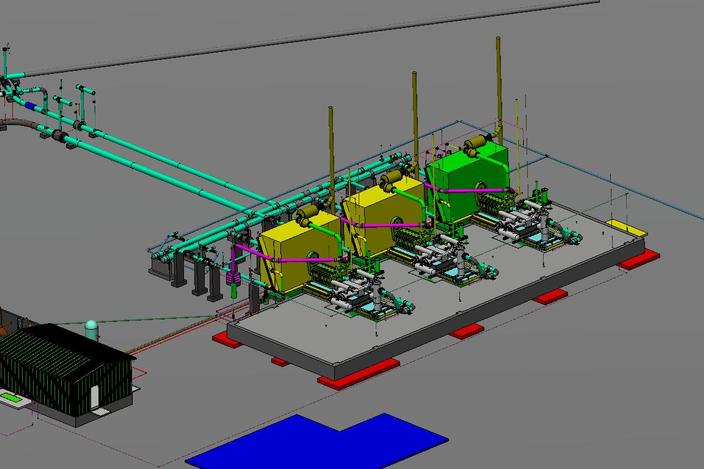

I designed this as one of 3 units at one of our compressor stations. This was a very large project that took me 9 months to complete the construction prints all from a massive 3D model. The compressor is designed to pressure the line up to 1400 psig. It has a engine cooler in front stacked on top of the gas cooler with a common radiator fan.
