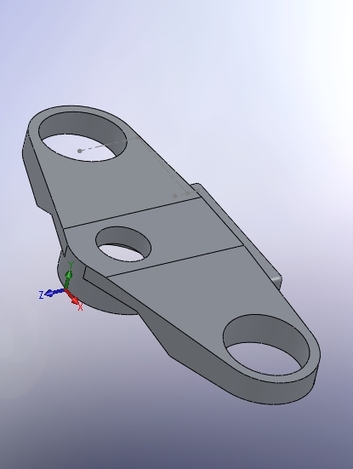

Phase 1, base outline completed

Rendering SolidWorks 2008 Other By Ryan LaPlante on 23 May 23:39 in Machine design

Select file:

Design 199 triple clamp.SLDPRT 2.6 MB V1 by Ryan LaPlante about 2 years ago
phase 1, base outline completed
Tiny add

Spent about and hour on this the drawing leaves a lot to be desired, look at the 75 dimension on top and imagine 4 of those fitting in the 300 dimension that is exactly twice as long... So im gonna get this under 1000g as my goal. Look for daily updates. 2008 SW so everyone is compatible :)
