Piston 100mm 4v

Rendering SolidWorks 2010 STL Other By Chanson on 01 Sep 19:59 in Automotive

Select file:

Piston 4v.SLDPRT 800 KB V1 by Chanson over 2 years ago Piston 4v.stl V1 by Grabby The Bot 12 months ago
Piston 100mm 4v
Tiny add

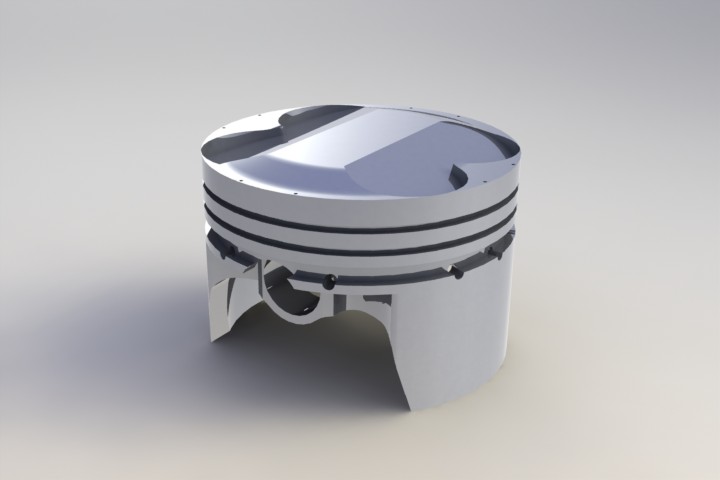

Piston with 100mm bore and 4 valve cutout, reduced skirt.
Inlet valve relief=40mm
Exhaust valve relief=36mm
Valve angle=15degree
Minimum Head Bore=95mm
