Rs232/rs485 pc board assembly

SolidWorks Older Rendering Autodesk Inventor STL Other By Greg Potts on 15 Feb 21:09 in Electrical Machine design

Select file:

circuit_board.stl V1 by Grabby The Bot 12 months ago
RS232/RS485 PC BOARD ASSEMBLY
Tiny Tiny Tiny add

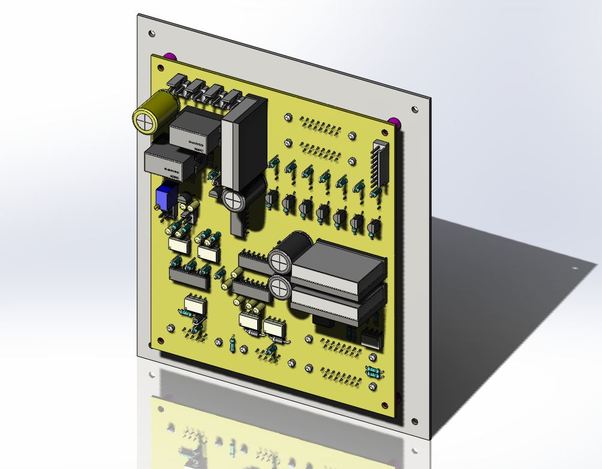

This PC board assembly is a module with full optical isolation for control circuits and RS232 to RS485 conversion. The PCB has standard DIP intigrated circuits, DC Caps, 1/4 watt resistors, TO9 Transistors, T 1 3/4 LEDS, Cosel DC-DC Converters, and Molex headers.
