Sheetmetal stair riser, angle bracket support, chemgrate tread

SolidWorks 2010 STEP / IGES STL Rendering Other By Dick Lowe on 02 Jul 02:06 in Fixtures Furniture Miscellaneous

Select file:

_ASSY, STAIRS 7 FOOT ELEVATION.IGS 2.3 MB V1 by Dick Lowe 11 months ago _ASSY, STAIRS 7 FOOT ELEVATION.STL 11 MB V1 by Dick Lowe 11 months ago

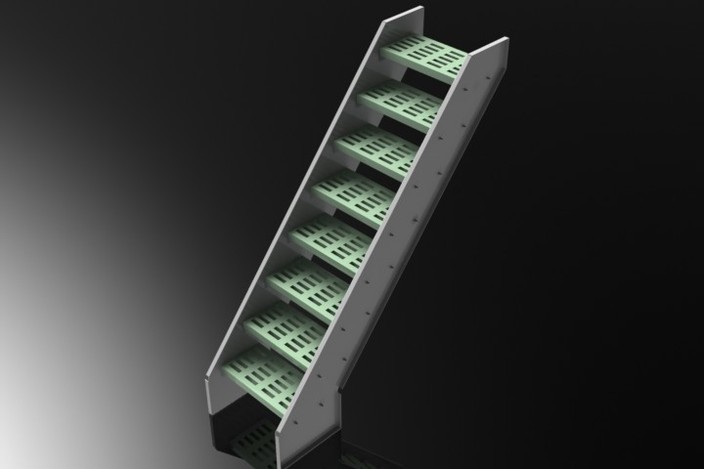

SHEETMETAL STAIR RISER, ANGLE BRACKET SUPPORT, CHEMGRATE TREAD
Tiny Tiny Tiny add

Stainless Steel Sheetmetal stair risers with stainless angle brackets supporting chemgrate treads.Bolted together and tied in with tubing.

This will be tied into my "Shrimp Line Assy" latest 2ND FLOOR ASSY, SHRIMP LINE REV 02
