Spur gear

SolidWorks 2008 STEP / IGES Rendering Alibre Design 2011 Other By James Chu on 09 Aug 03:18

Select file:

spurgear.SLDPRT 1.4 MB V1 by James Chu 9 months ago spurgear.IGS 5.9 MB V1 by James Chu 9 months ago

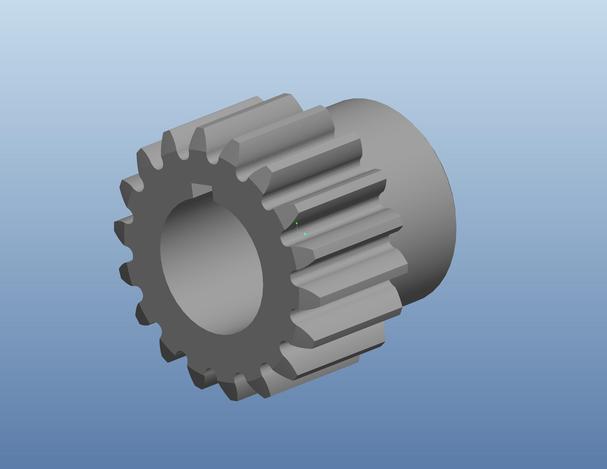

Spur gear
Tiny Tiny Tiny Tiny add

Module #2
Pressure angle = 20 deg.
Teeth: 18
Diameter = 40 mm
Pitch Diameter = 36 mm
