Stairs with platforms

Autodesk Inventor 2010 Rendering STL Other By Johan M on 10 Oct 11:56 in Construction

Select file:

Inventorstairs2.ipt 1.1 MB V1 by Johan M over 1 year ago Inventorstairs2.stl V1 by Grabby The Bot 12 months ago
Stairs with platforms
Tiny add

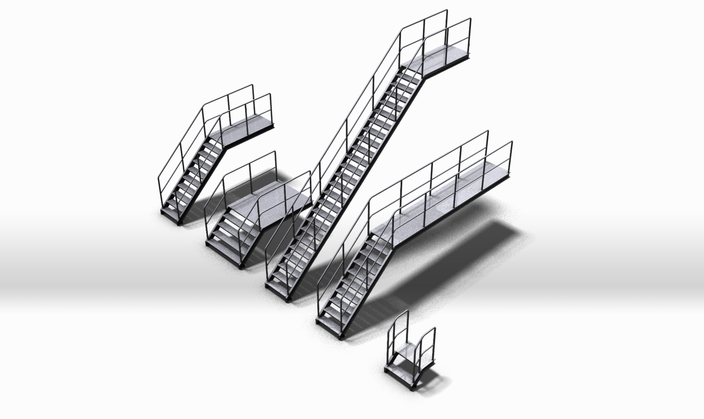

Inventor stairs with platforms
options too change value in the Sketch
You can change
Stairsheight
Stairslength
or switch too Stairsangel+Stairslength/Stairsheight
Stairswidth
Stepheight
Railheight
Step and rail update automatic...
only one modell
