Standoff, 1/4 inch, adaptive

Rendering Autodesk Inventor 2011 STL Other By John Evans on 07 Sep 19:19 in Fixtures

Select file:

Standoff_Var - 0.25 in.ipt 100 KB V1 by John Evans over 2 years ago Standoff_Var - 0.stl V1 by Grabby The Bot 12 months ago

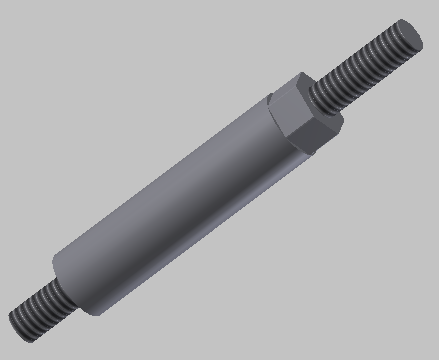

Standoff, 1/4 inch, Adaptive
Tiny add

Stud Standoff
Shaft: 1/2" dia x adaptive Length
Studs: 1/4x20 Inch adaptive Length via Assembly constraints
Top stud includes workplane to optionally constrain 2-3 threads beyond nut
Material:Mild Steel
