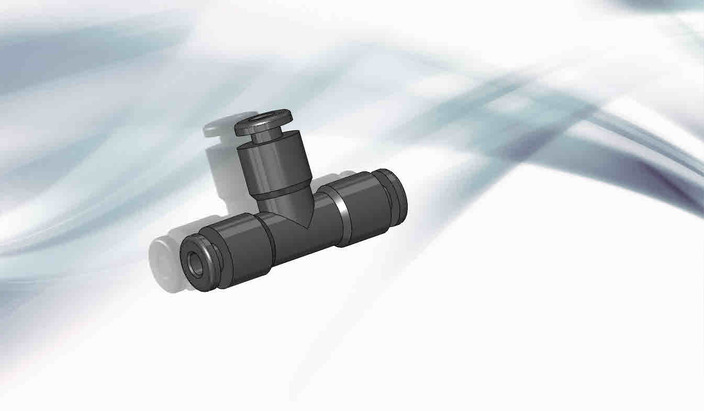

Tee tube fitting 5/32 tube

SolidWorks 2010 STEP / IGES Rendering STL Other By Nelson Brazeau on 31 May 21:46 in Automotive Aviation Medical Miscellaneous

Select file:

Tee-Fitting-5_32 tube.SLDPRT 320 KB V1 by Nelson Brazeau almost 2 years ago Tee-Fitting-5_32 tube.STEP 170 KB V1 by Nelson Brazeau almost 2 years ago Tee-Fitting-5_32 tube.stl 320 KB V1 by Grabby The Bot 12 months ago

Material
Plastic
Plastic Type
Nylon
Nylon Material Note
Nylon is Glass-Filled
Color
Black
Grasping Ring Material
Brass
O-Ring Material
Buna-N (Nitrile)
Release Ring Material
Polypropylene
Release Ring Color
Black
System of Measurement
Inch
For Tube Outside Diameter
5/32"
Maximum Pressure
275 psi @ 70° F
Vacuum Rating
29" Hg @ 70° F
Operating Temperature Range
-20° to 225° F
For Tubing Type
Nylon
Nylon Tubing Type
D.O.T. Nylon Tubing
For Use With
Air
