Triple screw pump body

Autodesk Inventor 2012 STEP / IGES AutoCAD Rendering STL By Manolis Theofilos on 14 Aug 08:46 in Machine design

Select file:

pump body.ipt 310 KB V1 by Manolis Theofilos almost 2 years ago pump body.stp 120 KB V1 by Manolis Theofilos almost 2 years ago pump body.stl V1 by Grabby The Bot about 1 year ago
Triple screw pump body
Tiny Tiny add

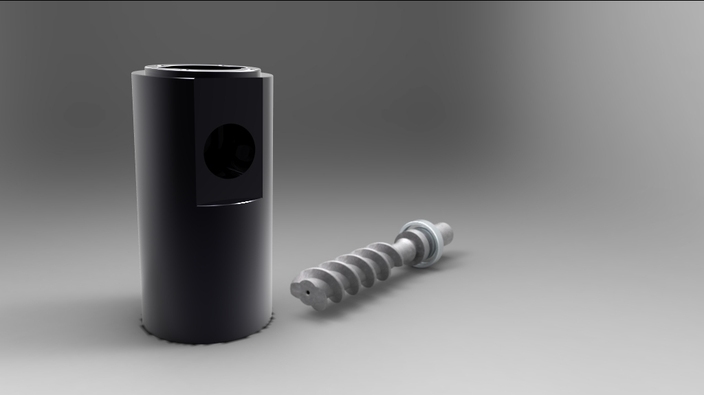

This is the main body of the triple screw pump I started to model here:
Triple Screw pump

The pump is made by IMO AB Sweden and it is from the E4 series pumps. It was installed in an elevator pumping hydraulic oil.
