Wheel blank

Rendering SolidWorks 2010 Other By Chanson on 03 Oct 20:26 in Automotive

Select file:

Template Wheel 19x8.5.SLDPRT 540 KB V1 by Chanson over 2 years ago

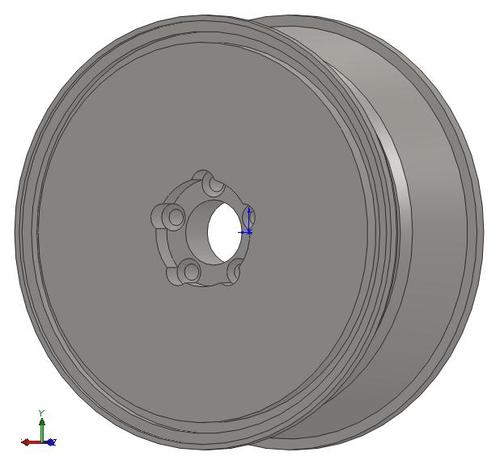

Wheel Blank
Tiny add

Template for 19x8.5in rim with 5 lug pattern. You can edit the rotated sketch to change the thickness/dimensions; then sketch on the pattern on the front plane and extruded cut through all.

Comments:

  • Blair Dixon
    Blair Dixon about 1 year ago

    Have uploaded a design using this as a template

  • Adam Pohl
    Adam Pohl 7 months ago

    Chanson do you have tolerancing information for the outside profile?

  • Chanson
    Chanson 6 months ago

    Sorry, I am not privy to that kind of information.
