Wide vice jig

Rendering SolidWorks 2009 Other By Adam Pohl on 29 Oct 11:17

Select file:

Model currently has no 3D-viewable files

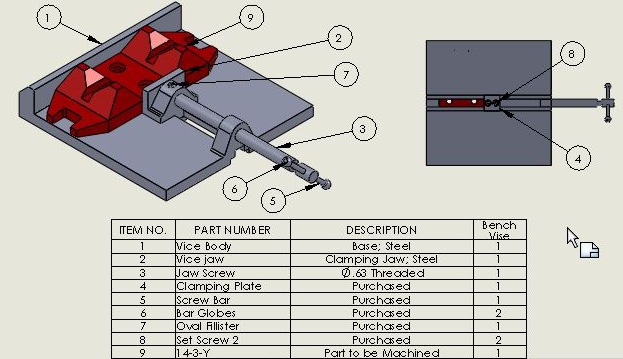

Wide Vice Jig
Tiny add

Flat locating surface, was designed to clamp part 14-3-Y while it was machined. This was an assignment in tool design.
