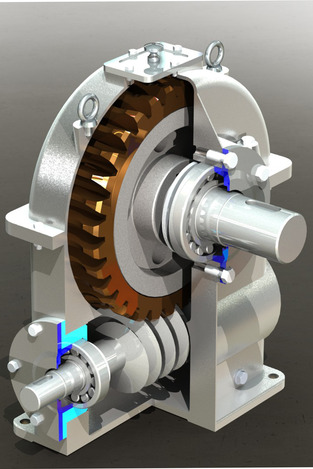

Wormgear

Gear ratio U = 8
The number of visits worm Zch = 4
The number of teeth of worm wheel Z. = 32
Worm gearing module M = 12
Axle distance a = 258 mm
The diameter of the worm dch = 132 mm
Diameter of worm wheel dc = 384 mm
Lifting angle helical worm - 19.98 deg.

Efficiency - 0.889
Rated torque to the driven shaft M = 3400 Nm

The type and number of installed bearings:
angular contact roller, № 7311, № 7219
Material worm - Steel 40H
Material worm wheel - BrA9Zh3L

The diameter of the inlet end of the drive shaft dvh = 45 mm
The diameter of the outlet end of the driven shaft dvih = 85 mm
