can anybody help me for to spilit core cavity in unigraphics or pro/e

By SIMMY CHAUHAN on 31 Jul 04:14 6 answers 3532 views 2 comments

can anybody help me for to spilit core cavity in unigraphics or pro/e and how to substract the sliders or lifters

6 answers

  • Hariprasad.V.Prabhakar
    Hariprasad.V.Prabhakar almost 2 years ago

    Hi,

    I have done extraction for the same part ( approximate the same shape) in UG NX 7.5

    and i am attaching the Video for the same and the NX file which i worked on

    UG will create multiple files like core,cavity, parting surf so on

    The top assembly file is " Plastic_Part_top_000.prt "

    Happy new year !!

    Attachments

    movie.7z, 13.4 MB
    Download
    Design.7z, 387 KB
    Download

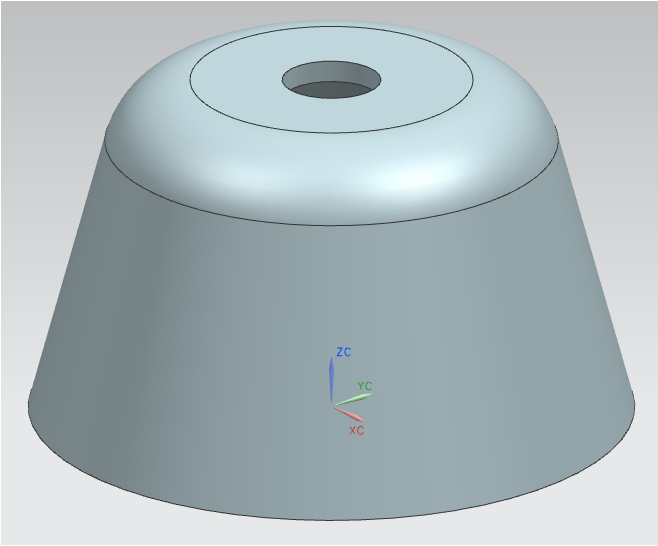

    Plastic_Part.bmp, 1.03 MB
    Download
  • sumithkarun
    sumithkarun about 2 years ago

    I am not that comfortable with Unigraphics, but i could help you with Creo parameteric(Latest version of Pro E), I took a simple component to explain the procedure but it needs a good understanding of moulding process to become a real expert in Core Cavity split. should understand the concepts of different parting surfaces.
    Dont worry! it is not a rocket science ,

    Attachments

    mould_explanation.rar, 2.35 MB
    Download
    1. Step 1

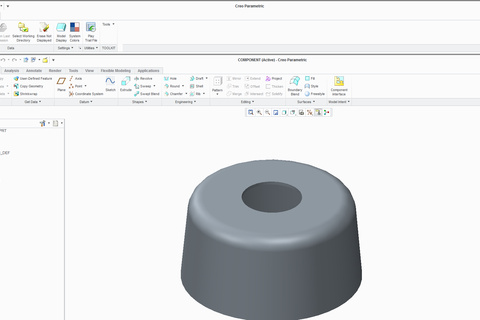

      For this tutorial ,I have created a simple cap shaped plastic component. You can use any of the component. Every component has unique parting surface

      Medium

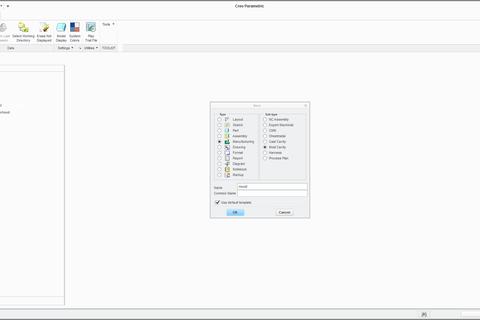

    2. Step 2

      After creating a component, Create a new file -(we need to create a manufacturing file, and opt for mould cavity on the right column) as shown in the image

      Medium

    3. Step 3

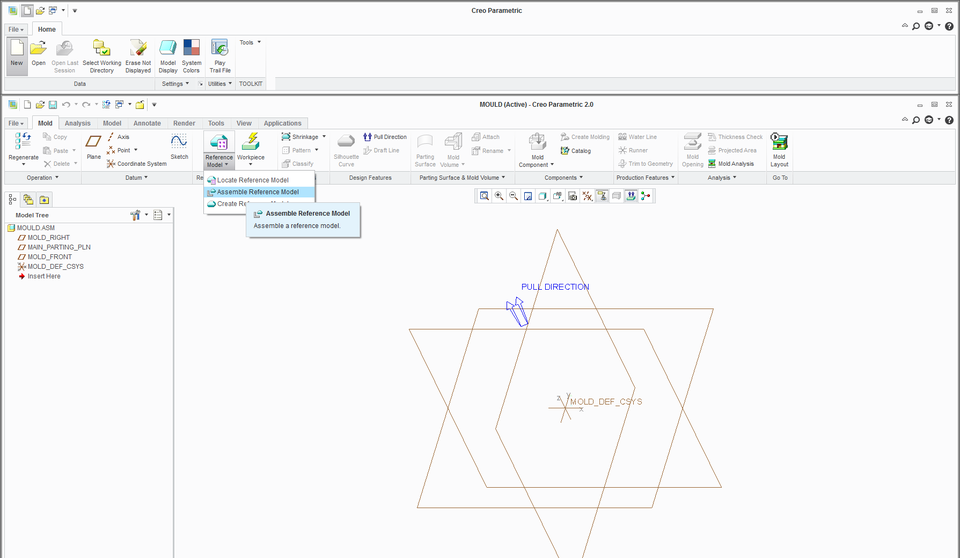

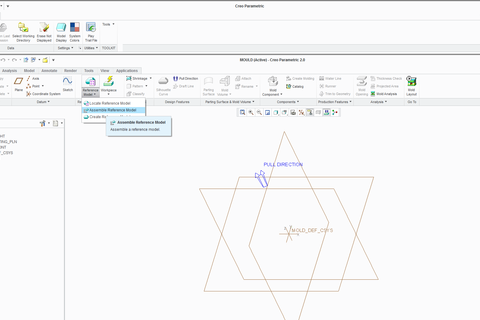

      You could see "pull direction" arrows in the screen, General practise is the mould opening should be in the direction of those arrows. For that you need to assemble the component in this assembly and orient the component properly so that you can get mould opening correctly.
      You need to click -
      1-reference model
      2-Assemble reference model

      As shown in the image.

      Medium

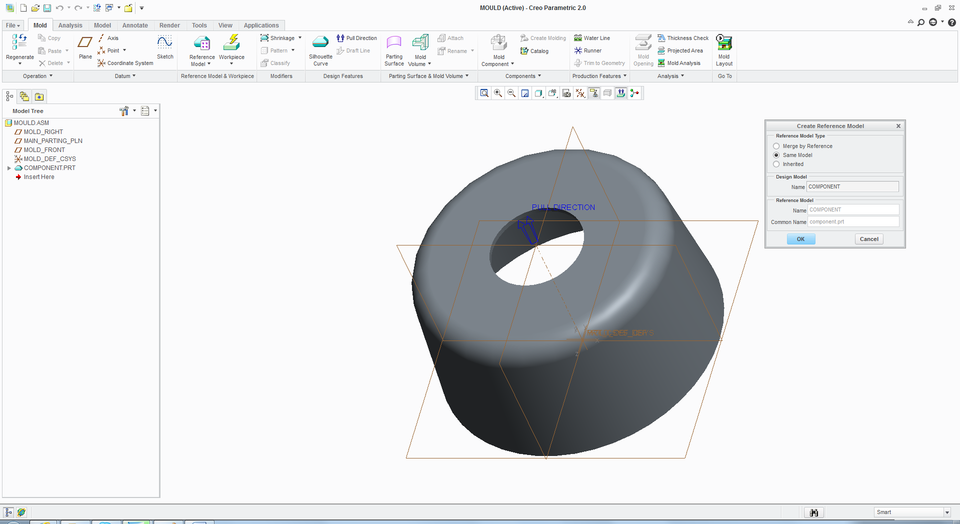

    4. Step 4

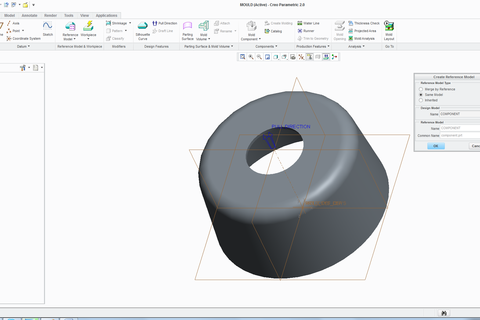

      Once you assemble the component , a small window pops up , asking for creation of reference model , you can opt for "same model". and click ok.
      The reason why we need to create a reference model is for including the shrinkage .If we create a new reference part and then add shrinkage, the shrinkage will be a part of the new reference part else it will be a part of parent model.

      Medium

    5. Step 5

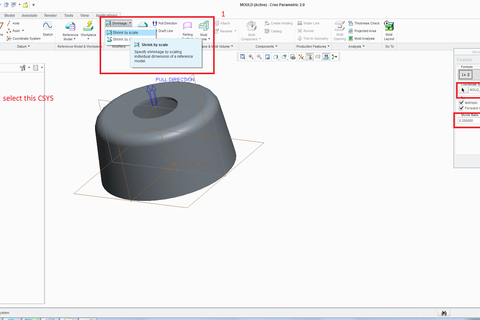

      Next step is to add shrinkage,
      Depending upon the plastic material shrinkage varies, In this example I have put 2% (scaling faction should be 0.02). Follow the image to add shrinkage. I have added step no on the image

      Medium

    6. Step 6

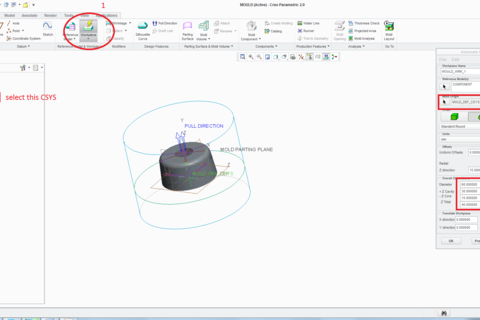

      Next step is to create a work piece.
      Work piece is nothing but outer size and shape of your mould. Logic behind core cavity splitting is that , work piece is initially cut using the part and this volume is split to core / cavity using parting surface.
      for creating an automatic workpiece please follow the steps in the image

      Medium

    7. Step 7

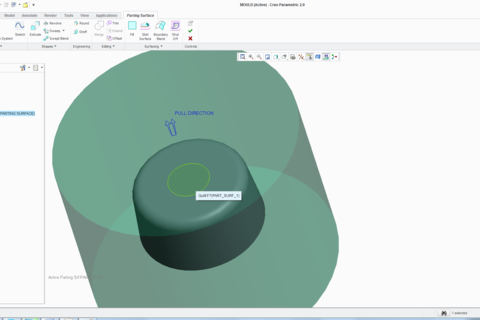

      Next step is to create parting surface
      In this example , we need only 2 parting surfaces (using "fill" option)
      Click "parting suface"--- "fill"--- use the edges the hole to create flat surface as shown in the image

      Medium

    8. Step 8

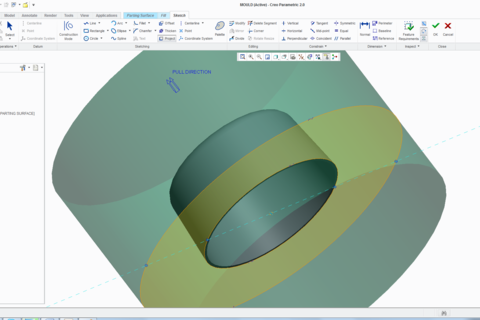

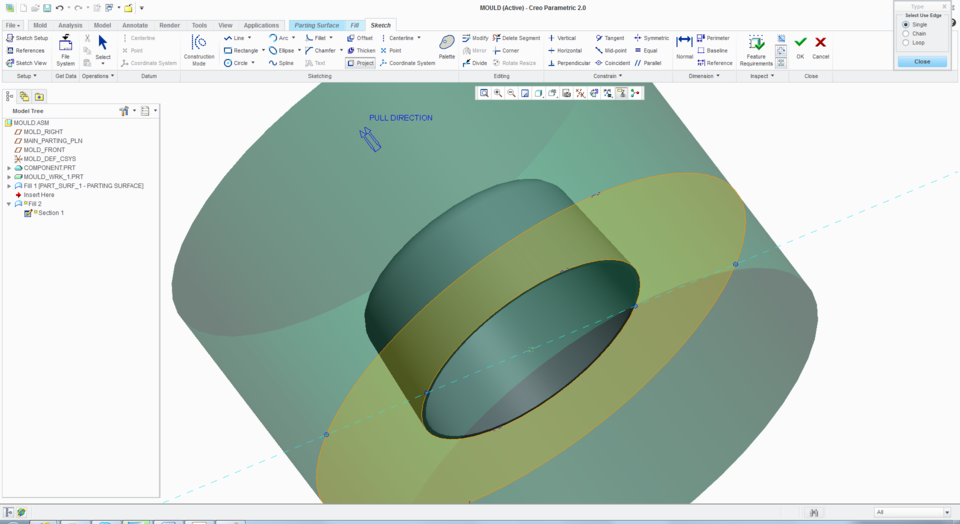

      Next step is to create 2nd parting surface
      Follow the same procedure of the previous step and create a parting surface as shown in the image

      Medium

    9. Step 9

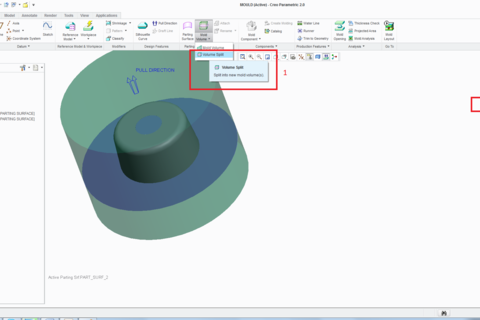

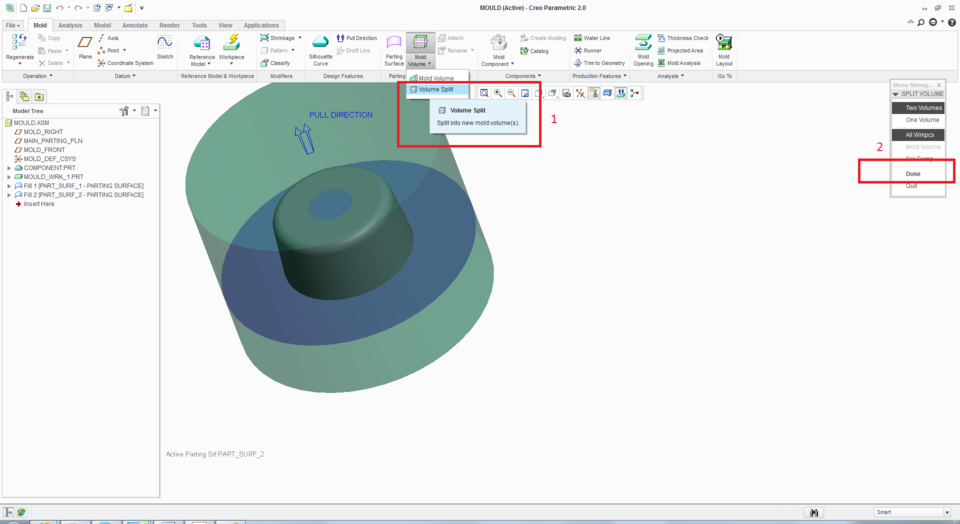

      Next step is to split volume to core and cavity
      Follow the steps in the image, and continue to next step
      While volume spliting you need to select the workpiece as volume to split and click done

      Medium

    10. Step 10

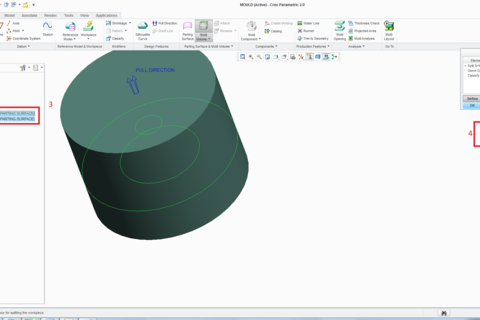

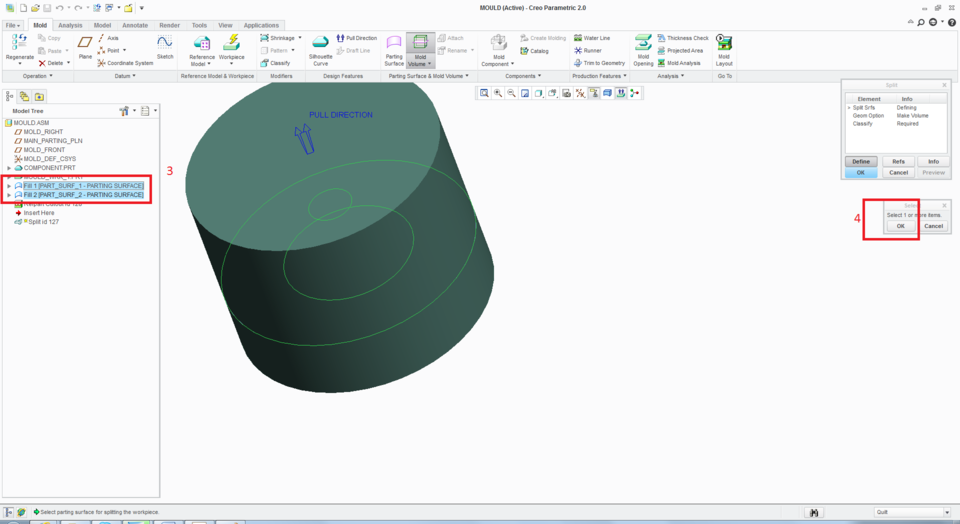

      Next step is to select the parting surface for spliting
      For defining the parting surface you need to select the 2 parting surface which you have already made .

      Medium

    11. Step 11

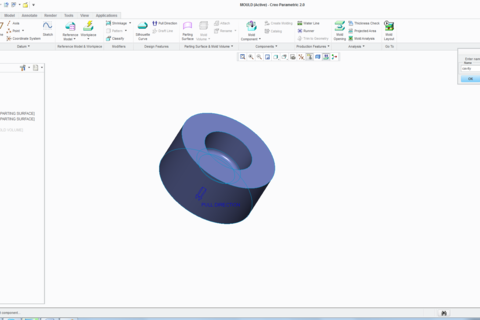

      Next step is naming the split volume to CORE and CAVITY
      In the image you can see that i have named male part as core

      Medium

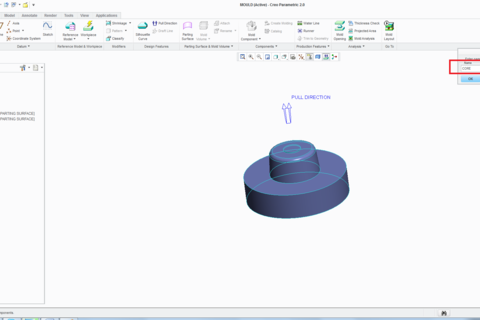

    12. Step 12

      Next step is naming the split volume to CORE and CAVITY
      In the image you can see that i have named female part as cavity

      Medium

    13. Step 13

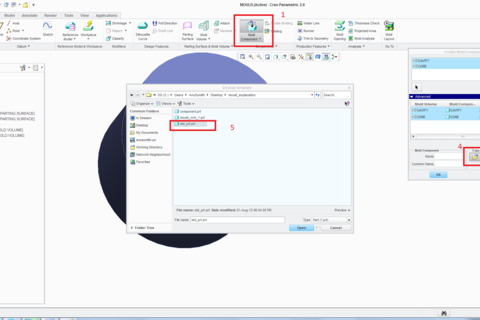

      Next step is to convert this volume to part
      In this step you are converting the volumes (core/cavity) to parts which has all the standard datum plane and CSYS
      Please follow the steps sequence in the image

      Medium

  • SIMMY CHAUHAN
    SIMMY CHAUHAN about 2 years ago

    thanking you sumithkarun ji i will try to understand from these tips and thanks for co operate....you are a true co-operator
