Dimension from hole to angular surface in part and dft, Solid Edge

By rajesh kumar on 18 Jun 11:03 1 answer 378 views 1 comment

Hi,

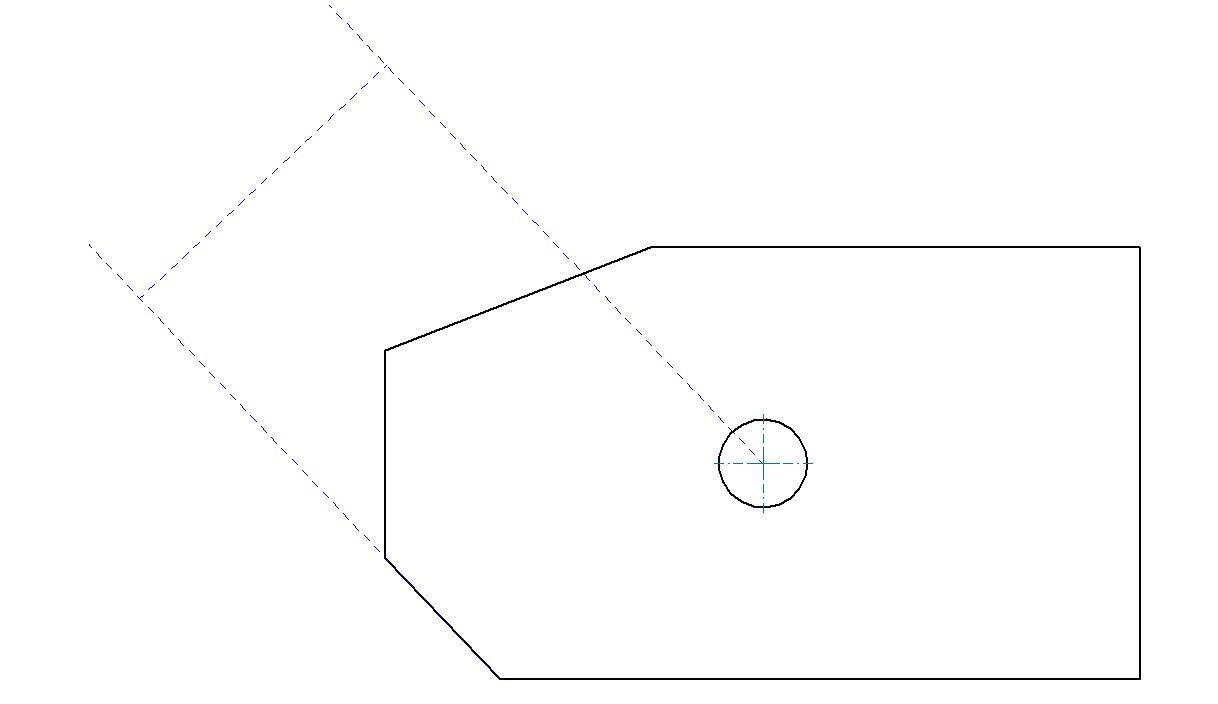

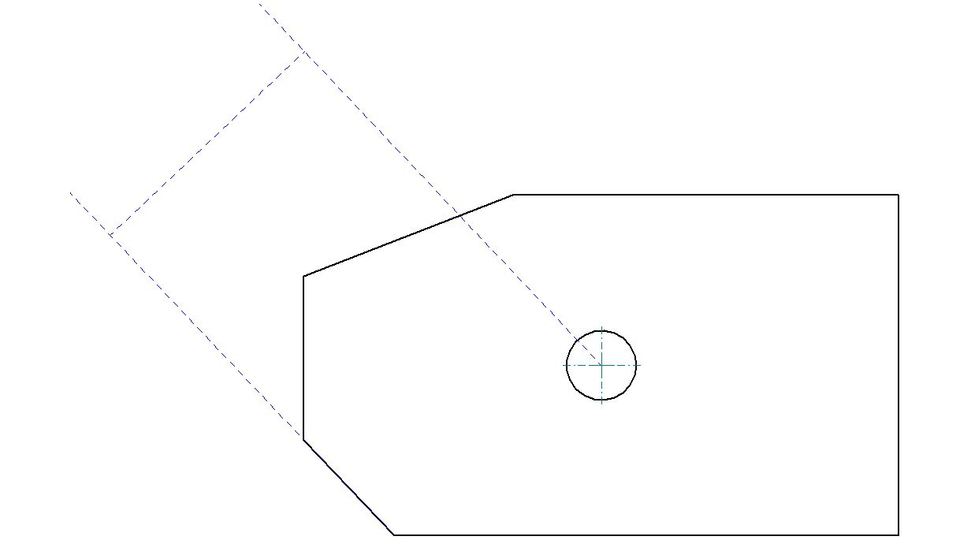

Please can anybody help me, how to do the dimension from hole to angular surface or line, as shown in the picture
Thank you

Added images

1 answer

didier about 1 year ago

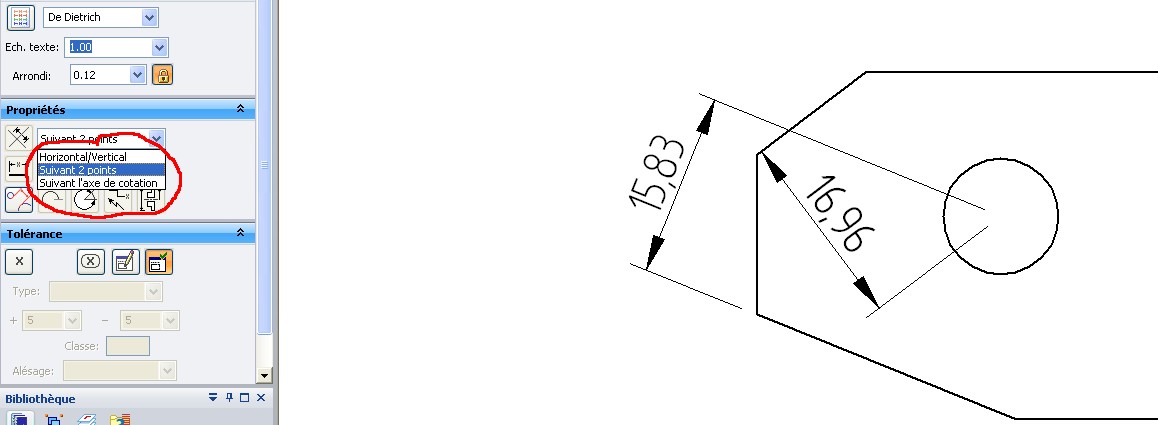

see the picture

Added images
1. rajesh kumar 12 months ago

  Thank you
