Help Needed on 3d drawing!

By jack cannon on 29 Apr 19:35 2 answers 673 views 1 comment

Not sure if anyone knows how to do this but I was wondering if anyone could help me out with this drawing. Here is the actal pic of what i'm doing: http://i47.tinypic.com/5zi807.jpg

I included the model also. I'm stuck on the part where there is suppose to be a hole drilled through.
Pic of model: http://i45.tinypic.com/i50kdv.png

I had the whole right now its suppose to be on the other side of object but I didn't know how to move the xy plane. Could someone try to do it?

Attachments

Mv-Ortho__9-1_fix.ipt, 122 KB
Download

2 answers

  • William
    William over 2 years ago

    You have uploaded a Word.Doc

  • ec48b2b3
    ec48b2b3 over 2 years ago

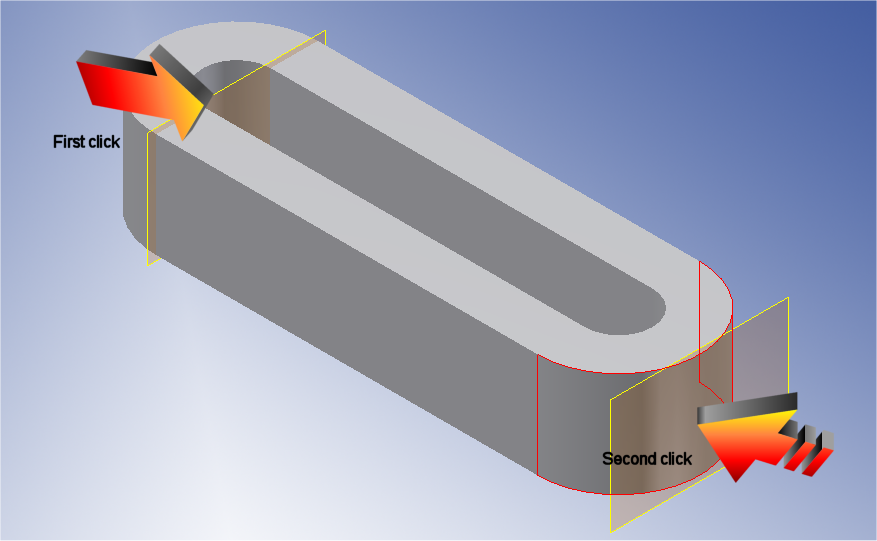

    First of all just click on a Origin plane then click on the round surface where you need the plane. then you can sketch your hole on the new plane.

    Added images

    Square
