  Control point of 2D spline has two parameters for controling of properties.
  One is marked as arrow - you can add a numerical value for it - it is represented as an angle.
  Second is marked with diamond, it is curvature value and you can dimension it and changing values.

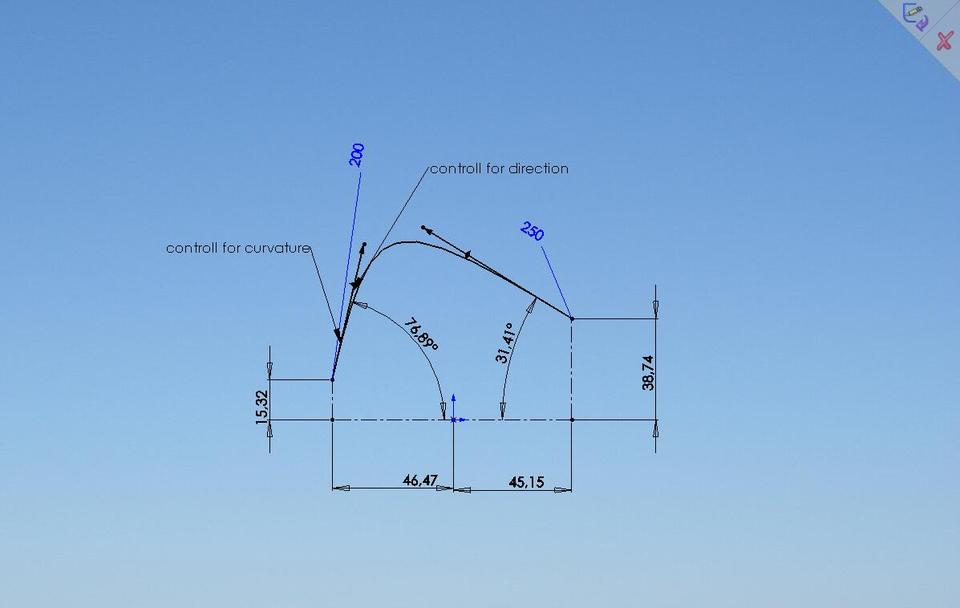

  1. Step 1

     Start position with constrained spline. all data had dimensions.

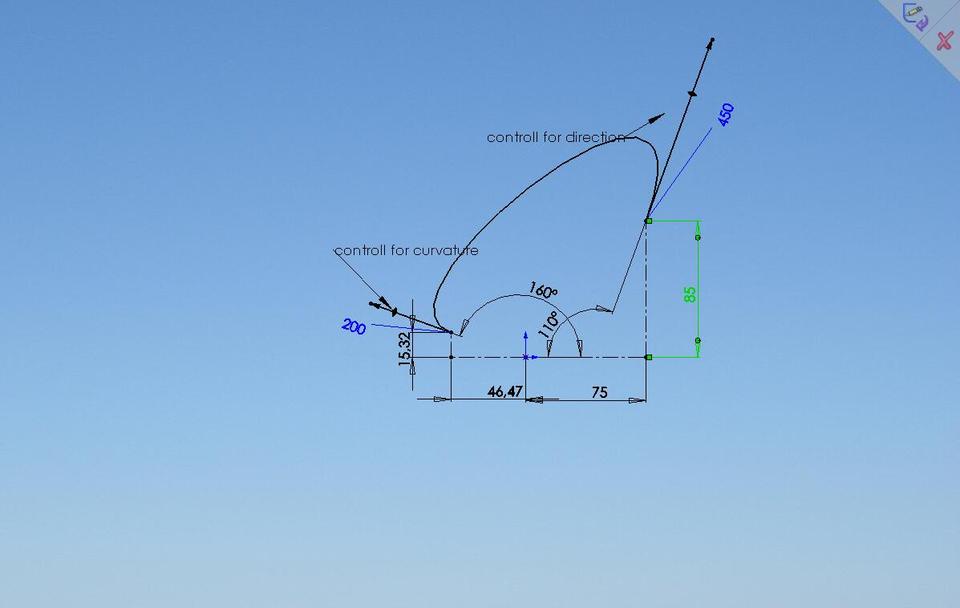

  2. Step 2

     Changing value for curvature produce following shape.

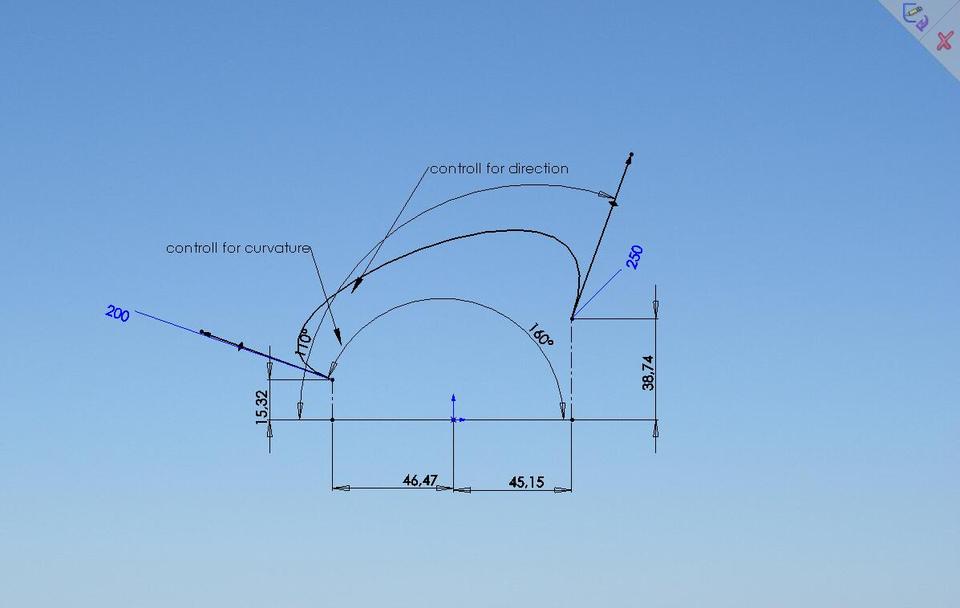

  3. Step 3

     Changing angle produce following shape of spline

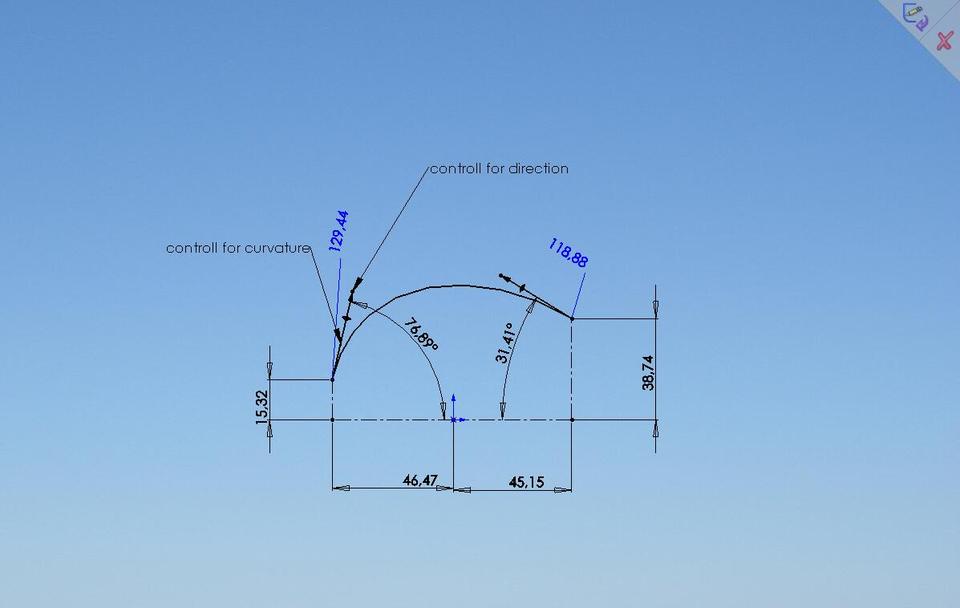

  4. Step 4

     Changing a dimensions of control point of spline produce following shape
