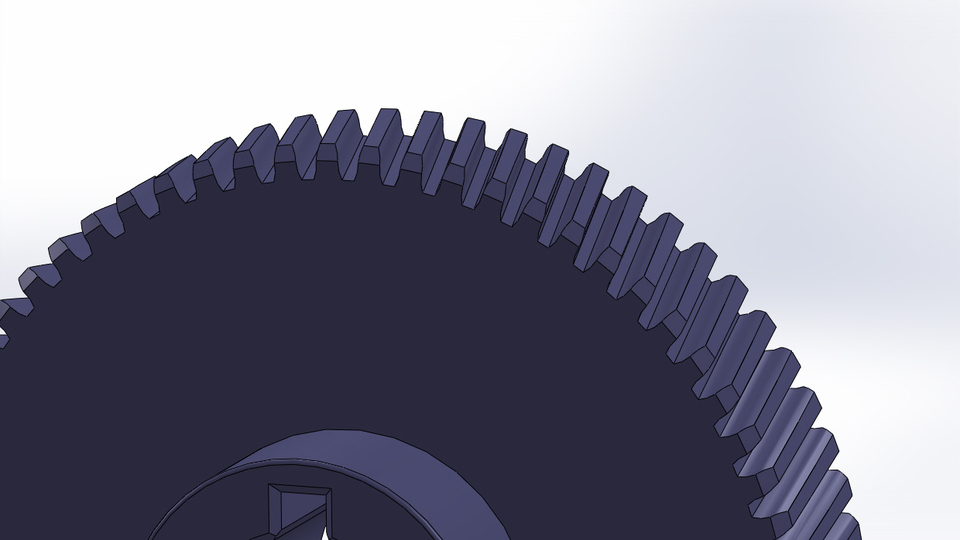

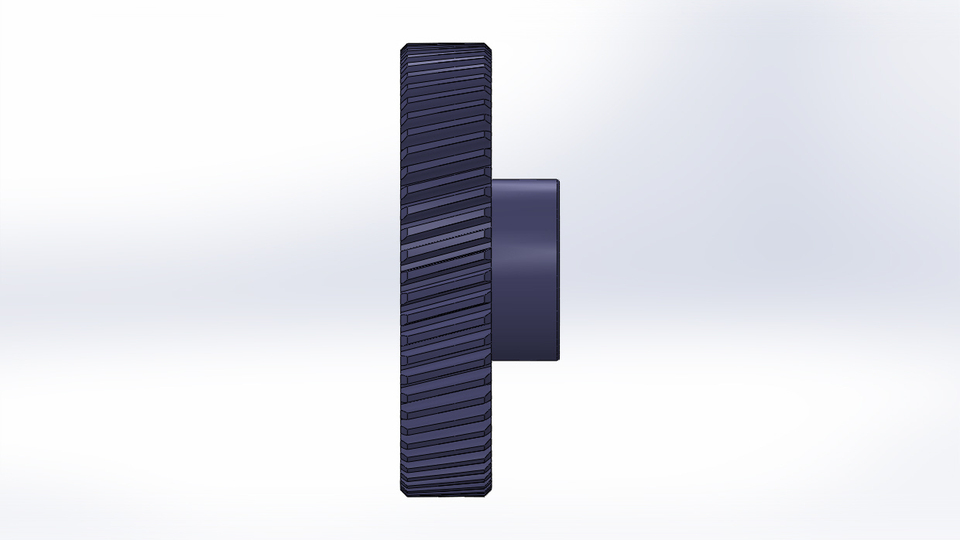

  do you mean helical gear? you have 2 choose:
  1- using geartrax software
  2- using solidworks tool box
  design library> tool box> Ansi metric> power transmission> gears> helical gear

  1. Step 1

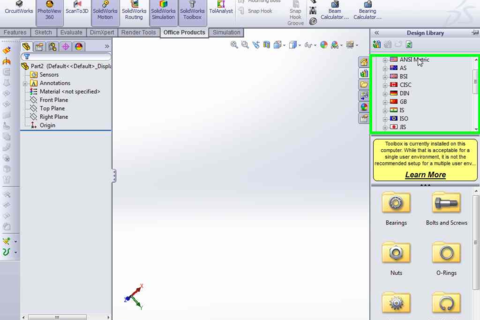

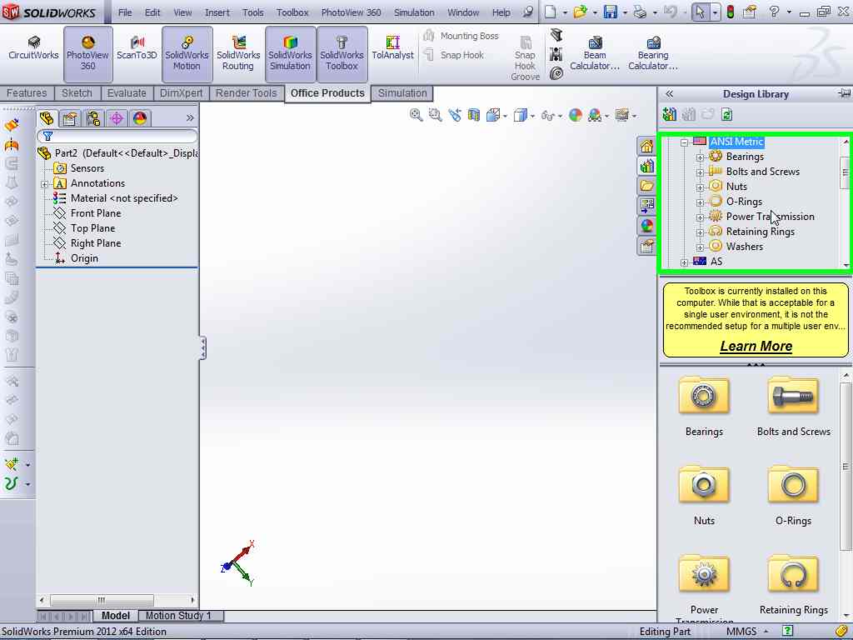

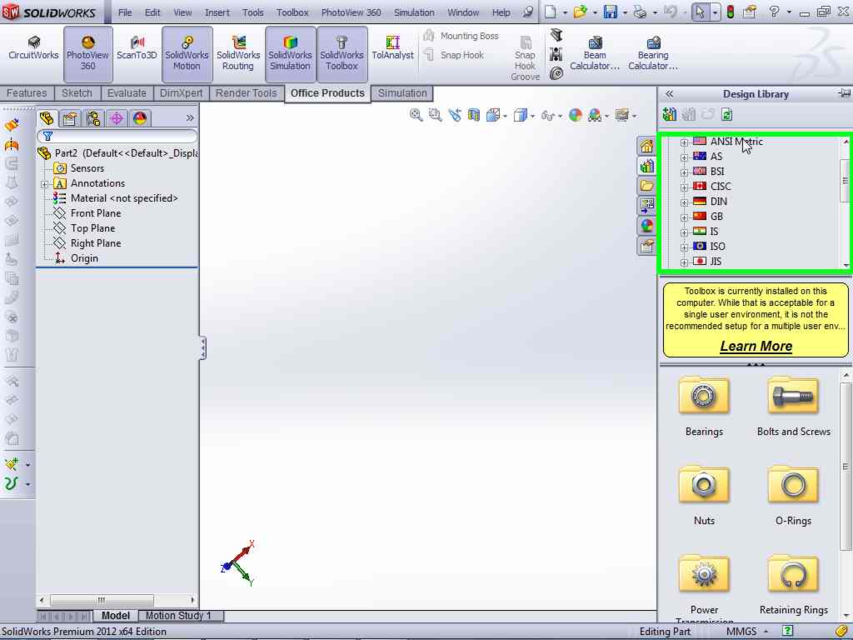

     left double click on "ANSI Metric (outline item)" in "SolidWorks Premium 2012 x64 Edition



  2. Step 2

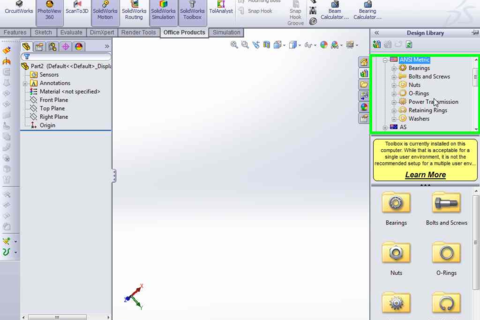

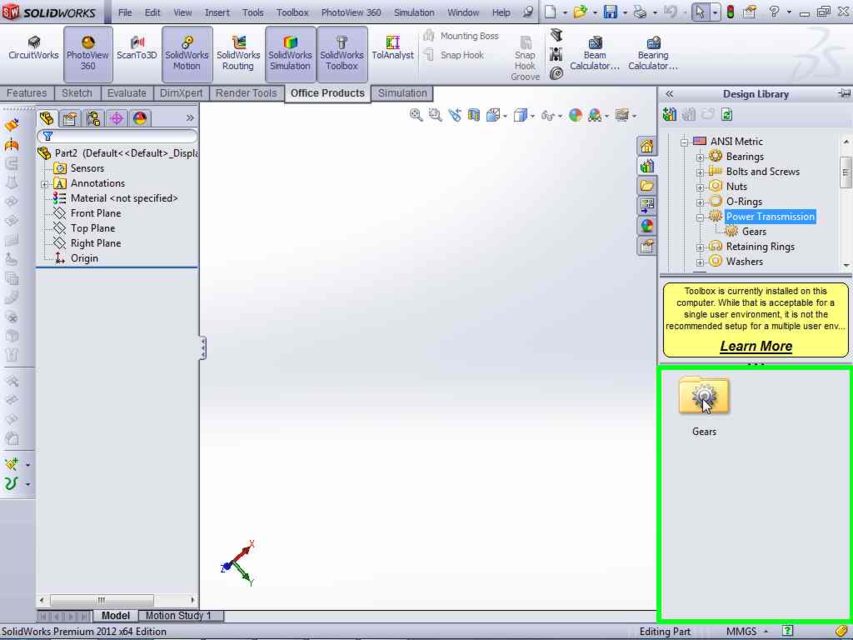

     left double click on "Power Transmission (outline item)" in "SolidWorks Premium 2012 x64 Edition



  3. Step 3

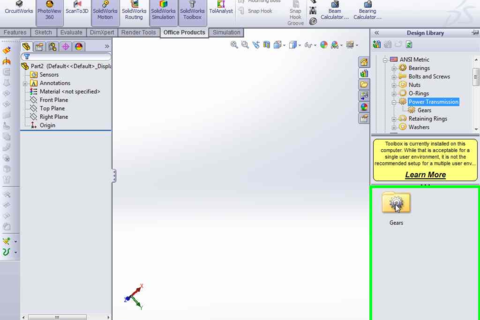

     left double click on "Gears (list item)" in "SolidWorks Premium 2012 x64 Edition



  4. Step 4

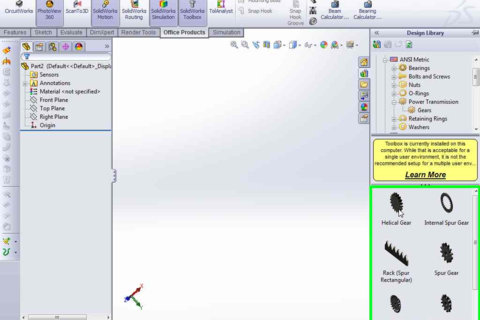

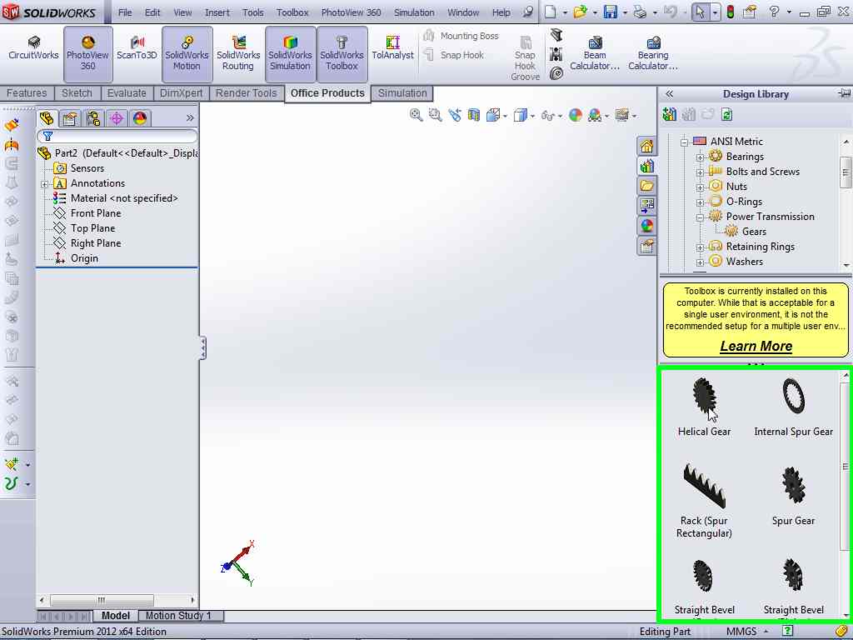

     right click on "Helical Gear (list item)" in "SolidWorks Premium 2012 x64 Edition



  5. Step 5

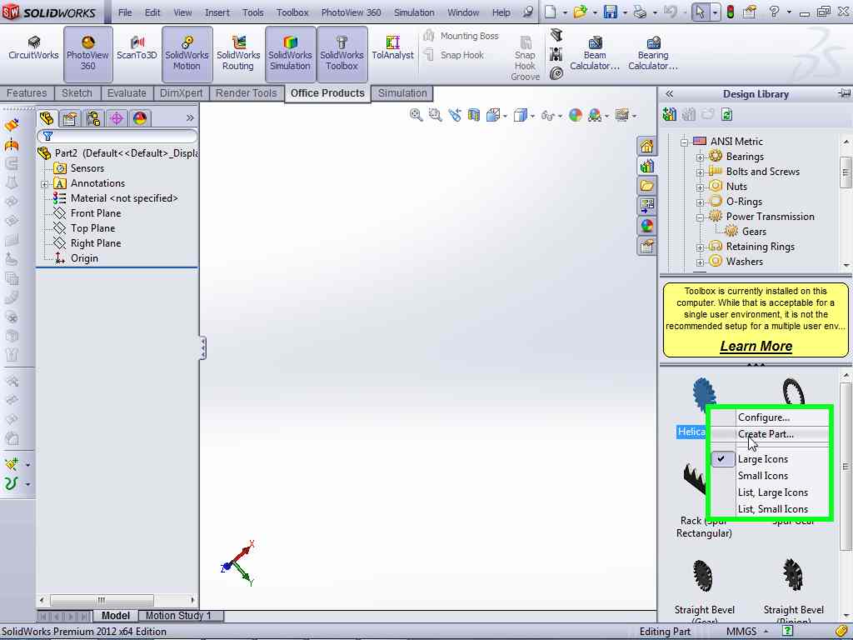

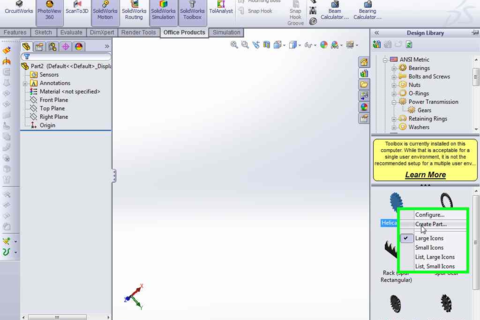

     left click on "Context (popup menu)"



  1.
     Sudhir Gill about 1 year ago

     he mentioned in question... NOT HELICAL.

  2.
     Ali Mahvan about 1 year ago

     if you look at the images, they are helical!

  3.
     Mahan about 1 year ago

     Thanks gill, please correct me if I'm wrong...

  4.
     Mahan about 1 year ago

     Thanks Ali but the toolbox is not installed with my software in Library Design tree, what should i do to install it?

  5.
     Sudhir Gill about 1 year ago

     even than toolbox is not capable of helical gear left handed... :(

  6.
     Sudhir Gill about 1 year ago

     http://www.akspiele.de/en/slotcar-car-racing/spare-parts-for-slotcars-1-32/slot-it-spare-parts-slotcars-1-32/diagonal-gear-wheel-for-anglewinder-for-3-32-durchm-2-38-mm-slot-it/a-903471/

  7.
     Ali Mahvan about 1 year ago

     @ Mahan:
     Tools> add-ins>
     put a check mark in "solidworks toolbox browser" in start up

  8.
     Ali Mahvan about 1 year ago

     @ Mahan:
     Do you really mean Helical gear(which is studied in mechanical engineering design) or diagonal gear ?

  9.
     Ali Mahvan about 1 year ago

     @Sudhir Gill:
     seems to be a bug!!!...
     well i'm sure geartrax can produce left handed helical gears...

•
  Nathan Harvey about 1 year ago

  The way I would do it is:
  Start a sketch on a plane somewhere above the middle of the part.
  Draw a line and dimension it at an angle from a "centerline" set to be vertical.
  Extrude the line thin feature, NOT merge result.
  Chamfer it a few times to make it look right.
  Then circular pattern the body and combine all the bodies at the end.

  1.
     Mahan about 1 year ago

     Thanks for your guide but could you please send me your modeling way with a simple SolidWorks example? I can't do that and it's a little amazing for me.
     thanks sincerely
