  This tutorial is very usefull when you need to share a 3D model with a partner that has no 3D modeling software installed.

  Wobbler Engine

  1. Step 1

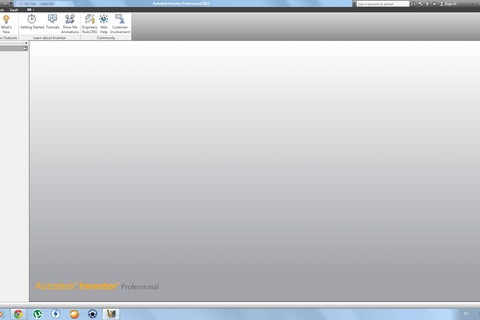

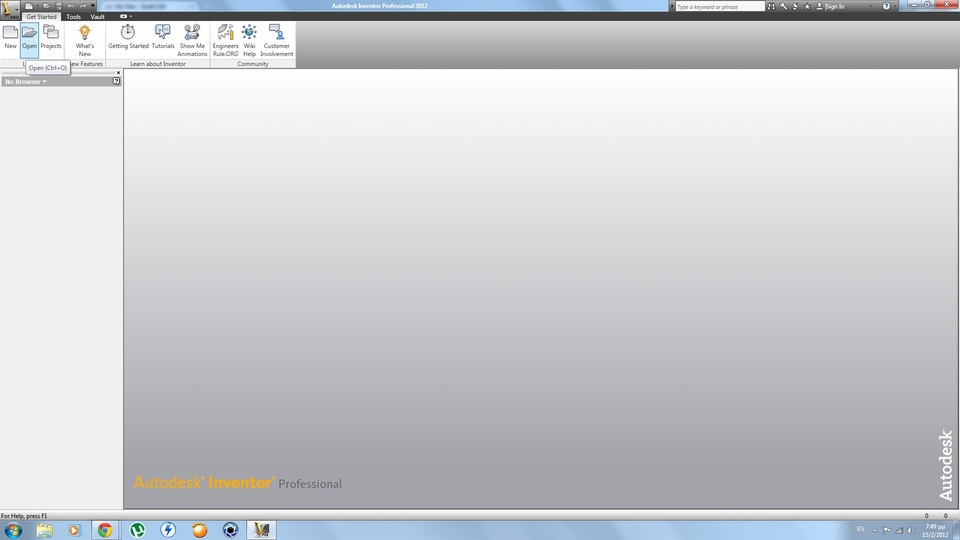

     Inside Inventor choose open



  2. Step 2

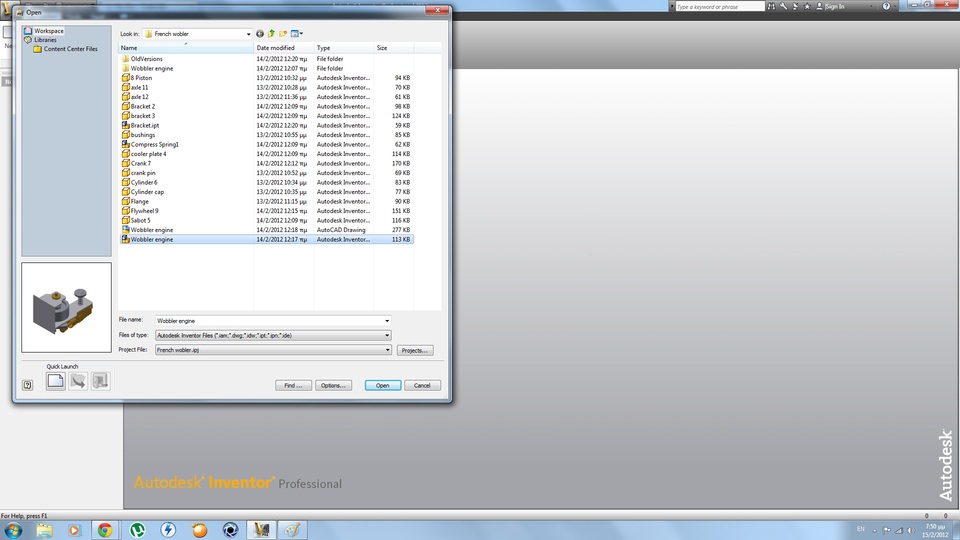

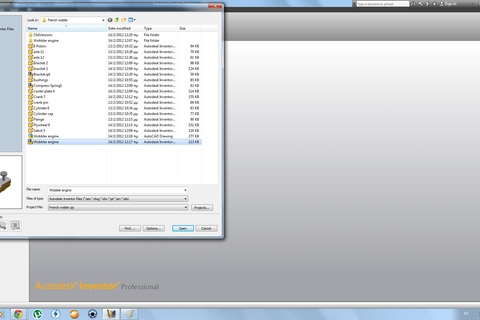

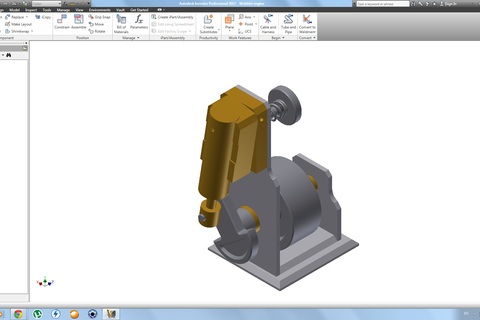

     Navigate to the folder your model is located. For this tutorial I will use my model "Wobbler Engine" in iam format. The same apply for step, iges and any other format Inventor can import.



  3. Step 3

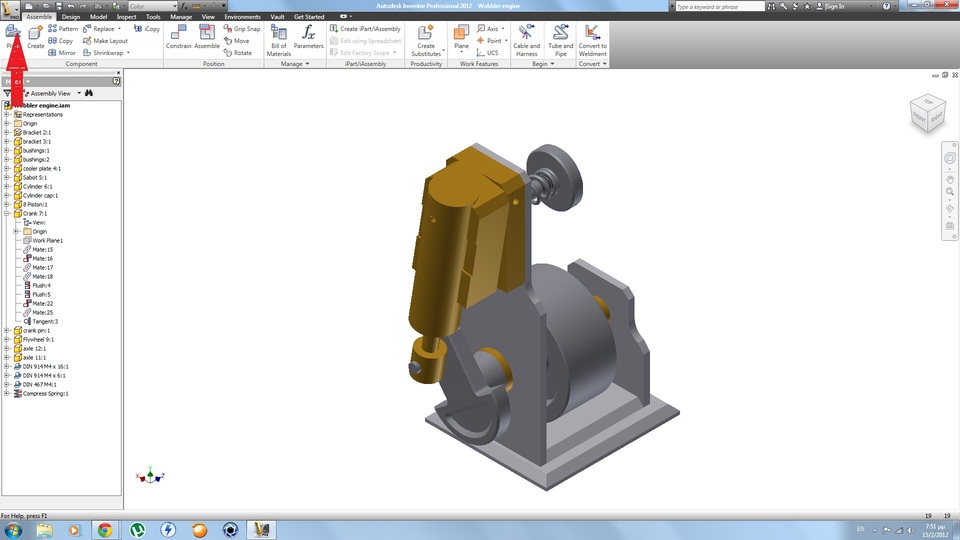

     After our model is imported we go click the Inventor icon (red arrow) and the drop down menu appears.



  4. Step 4

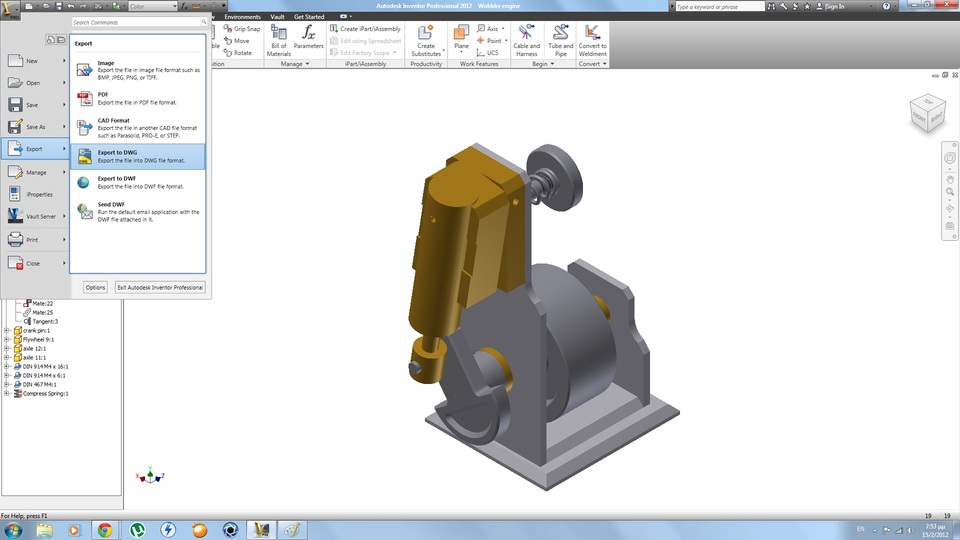

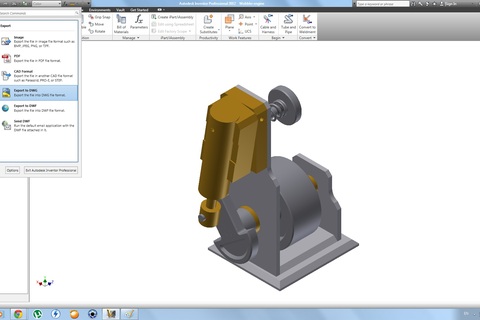

     We go to export -> export to DWG



  5. Step 5

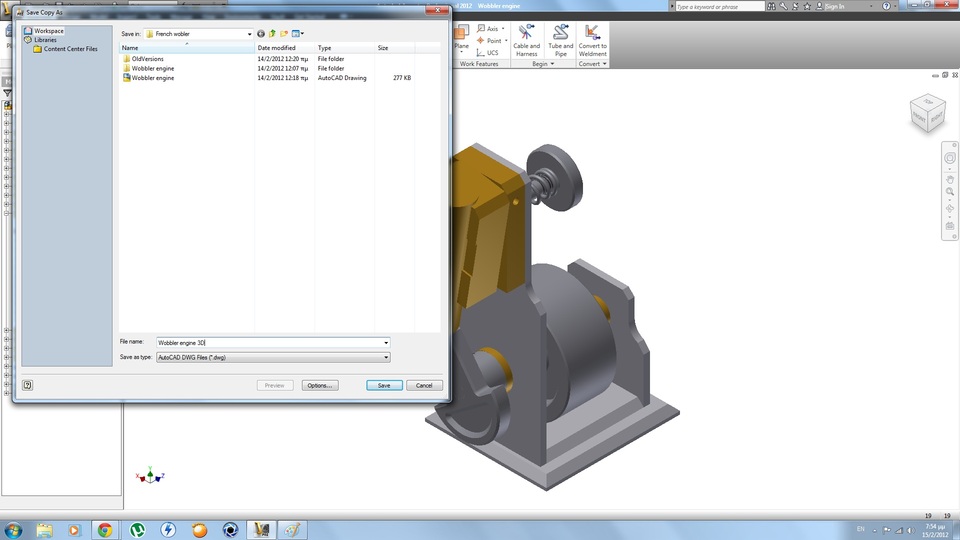

     we choose a name and a location and click save



  6. Step 6

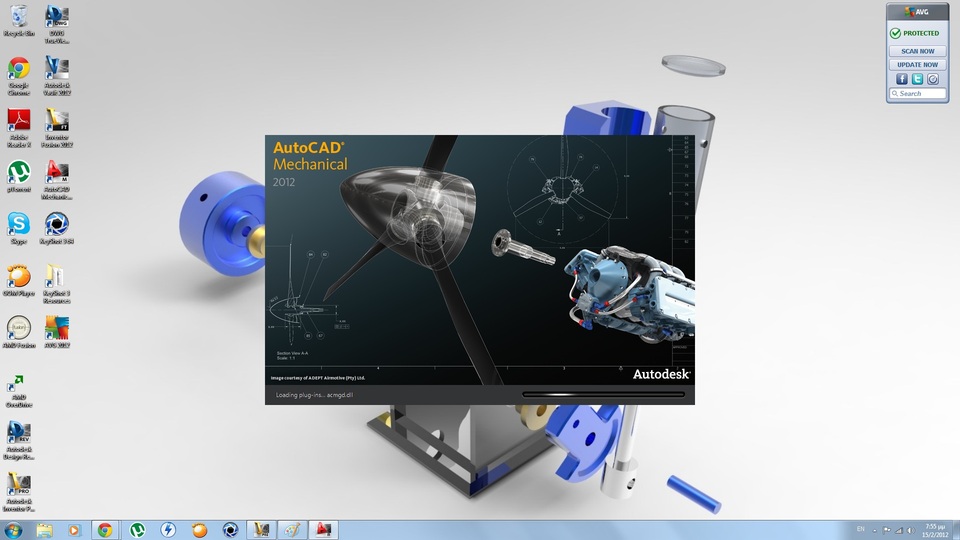

     Lets see how our model looks like in autocad. We open Autocad (for this tutorial autocad mechanical 2012 is used. A standard version of autocad can also be used)



  7. Step 7

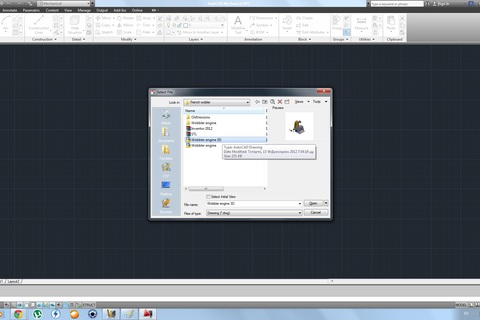

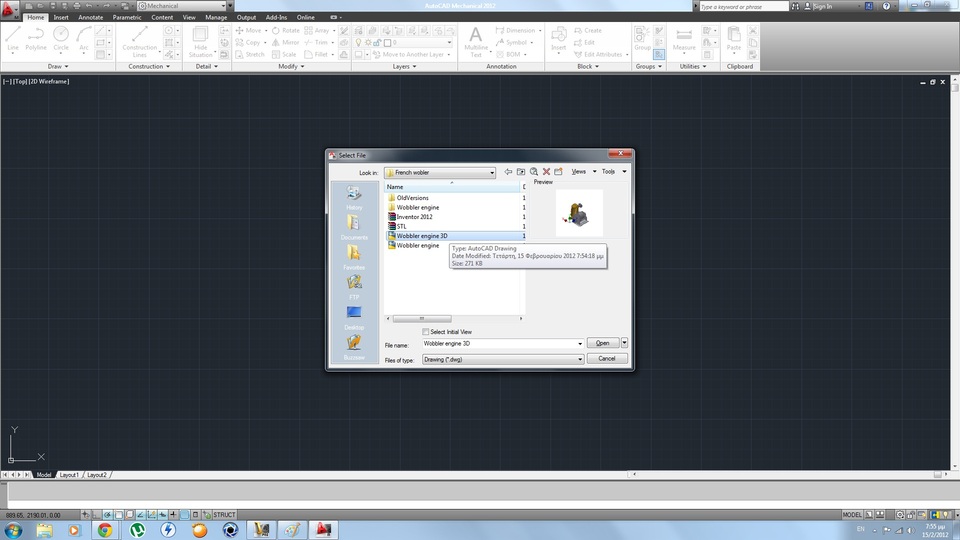

     We click open and find our dwg file we just created



  8. Step 8

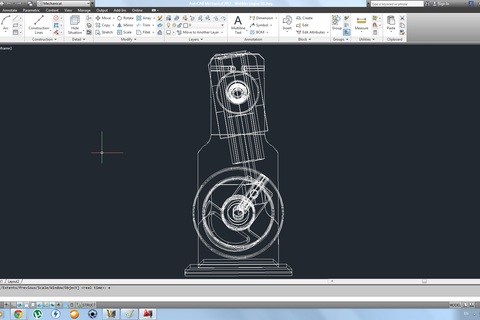

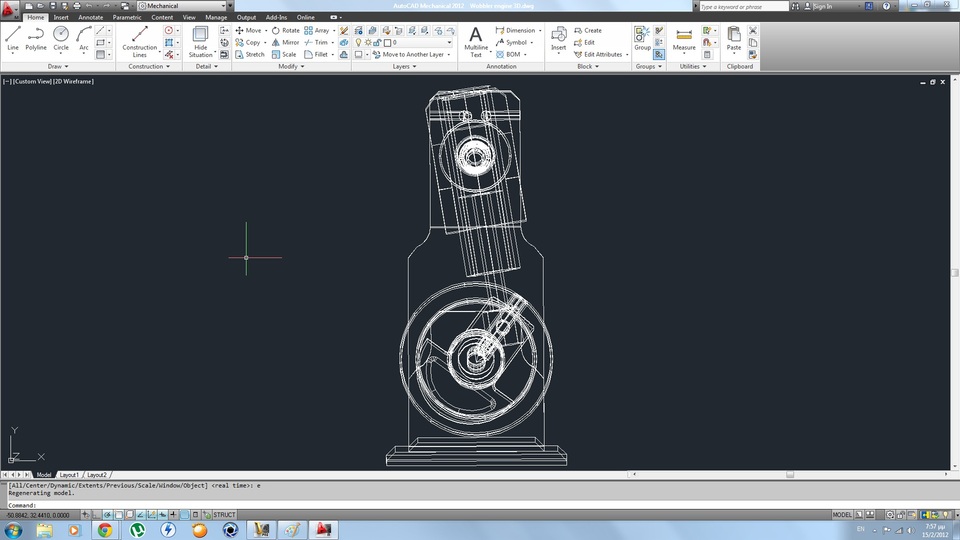

     After autocad opens our file this is what our screen should look like.



  9. Step 9

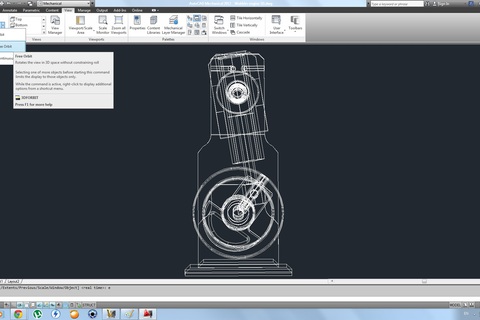

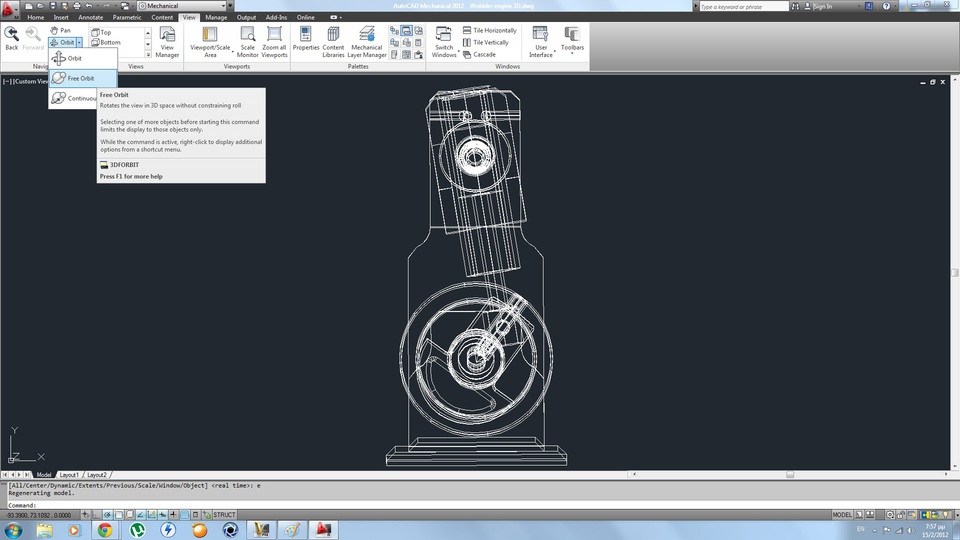

     Lets move it around a bit. In the ribbon go to View->Navigate->Orbit-> Free Orbit



  10. Step 10

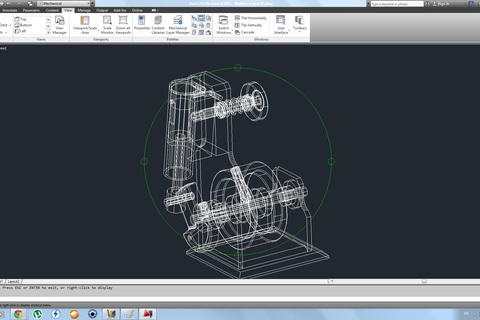

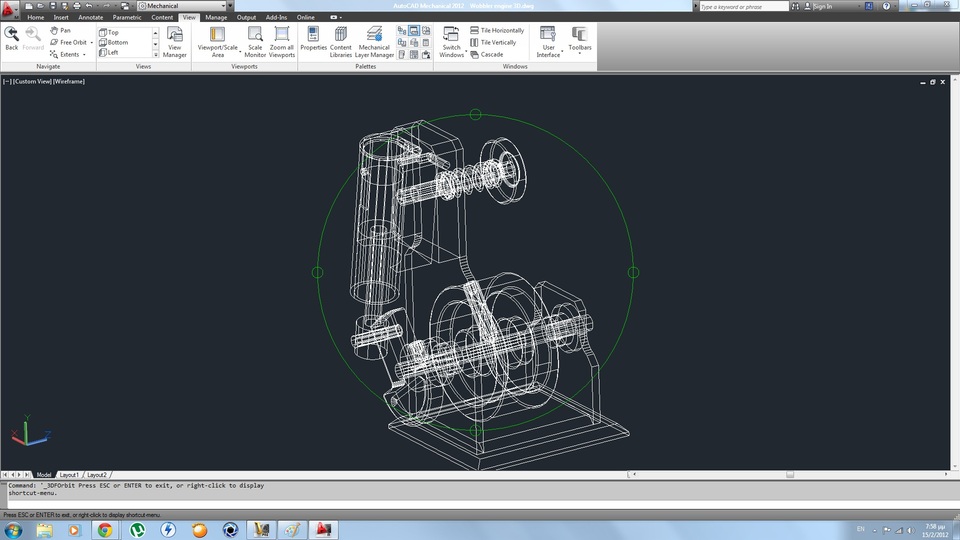

      As you can see our model is in full 3d.



  11. Step 11

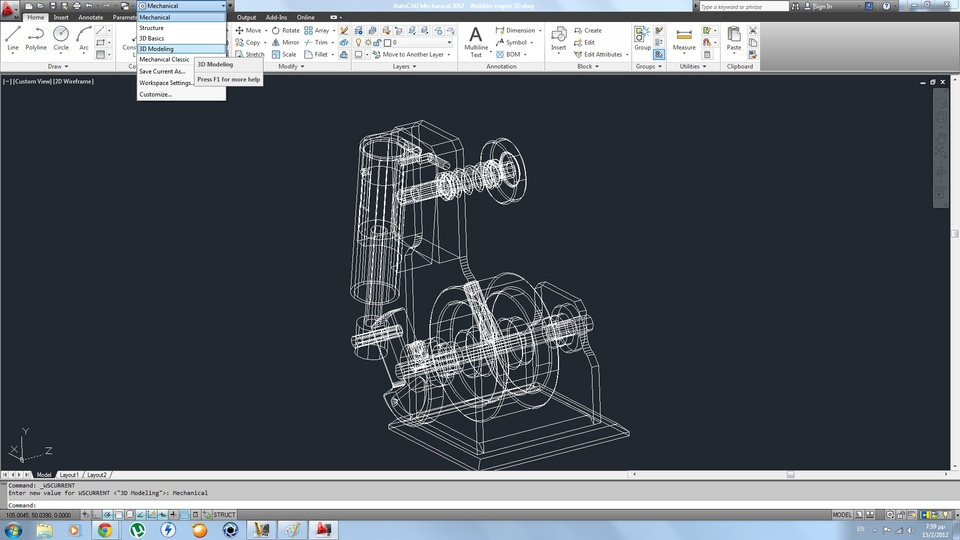

      Lets make a render out of this. Go to the Quick Acces Toolbar and choose 3d Modeling



  12. Step 12

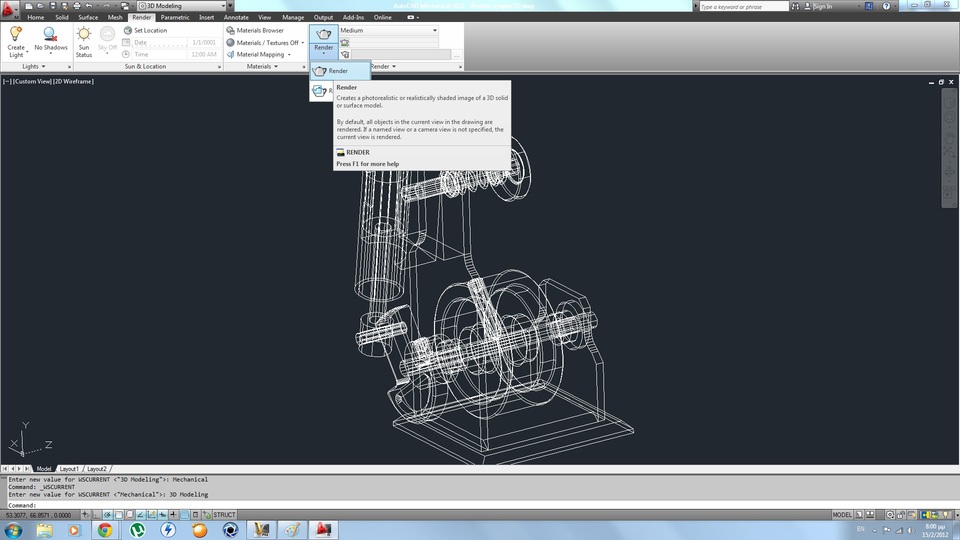

      In the Ribbon go to Render->Render->Render



  13. Step 13

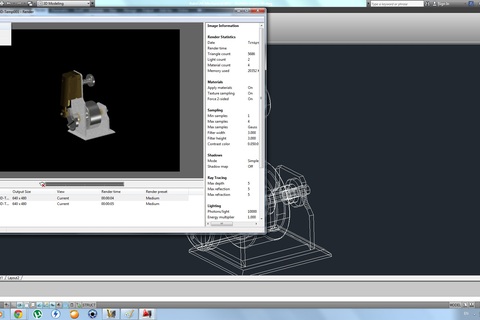

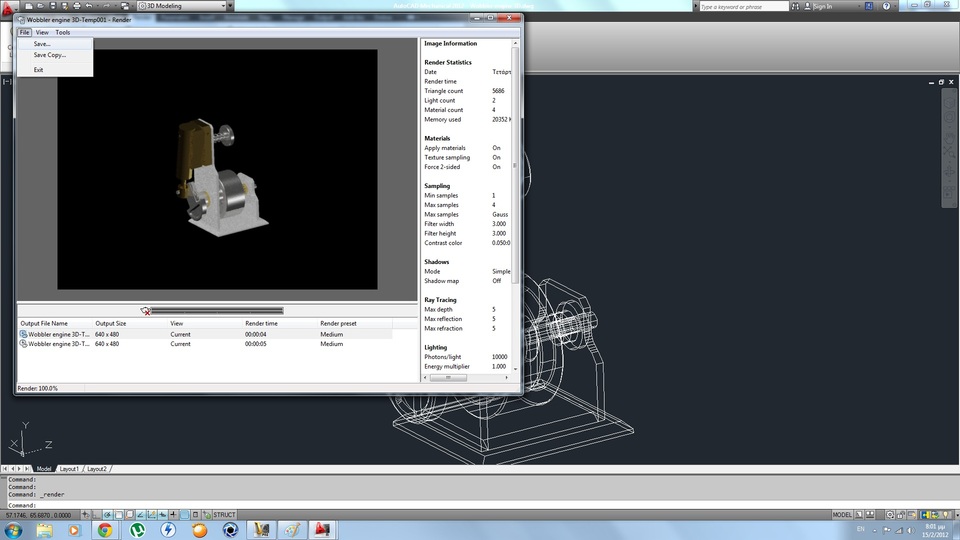

      After we wait a bit our rendered model looks like this. Notice that autocad automatically uses the colour style our model has in Inventor.



•
